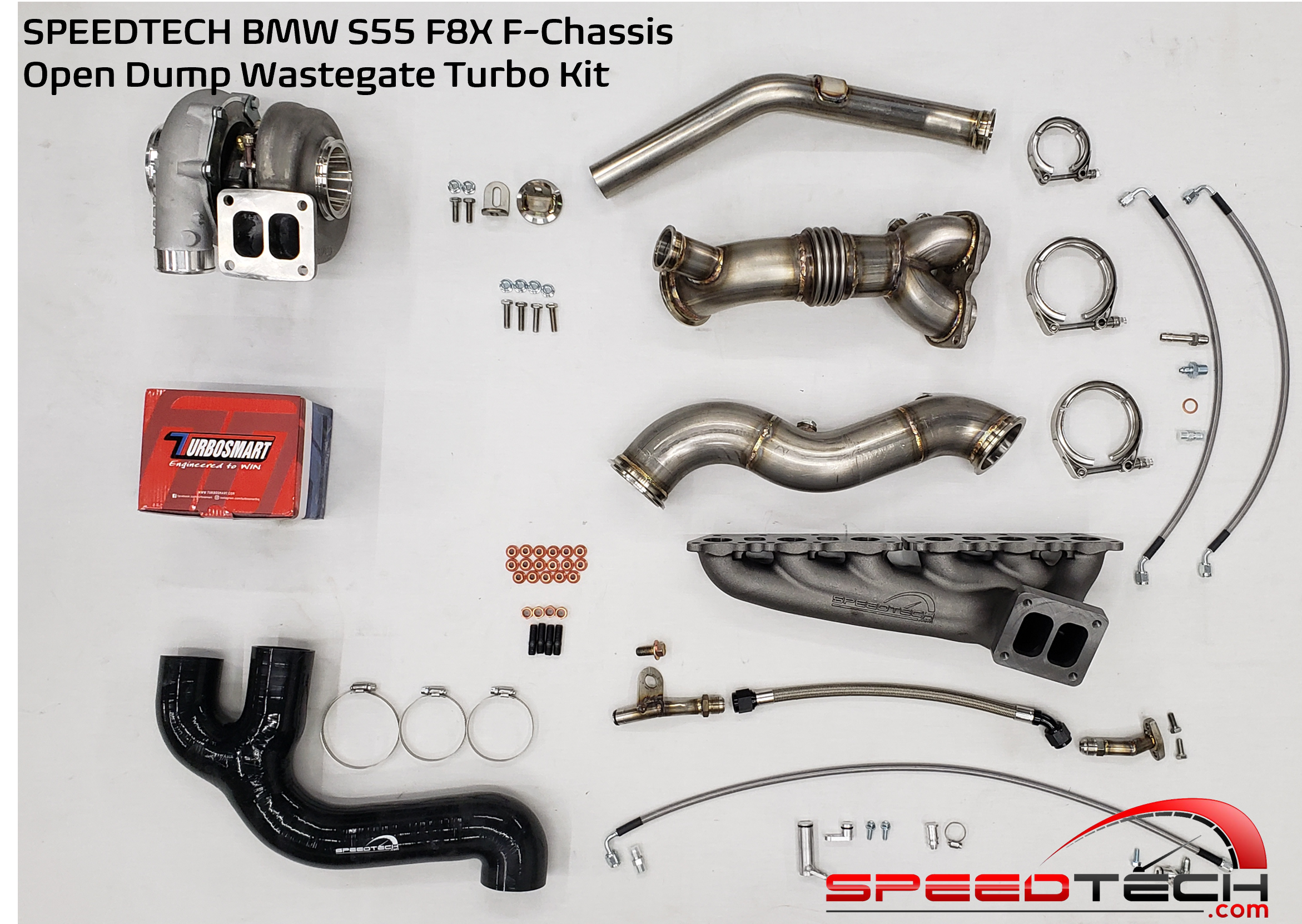

INCLUDED IN THE KIT:
- T4 Manifold with studs and nuts (Ceramic or Non-Ceramic options)
- 2 piece Stainless Steel Tubing (*If you will be fabricating your own and would like to delete our 2 piece tubing parts from your order, email us for a discount code)
- Stainless Steel Open Dump Wastegate Pipe
- V-band clamps
- Billet CNC Aluminum Oil & Coolant Plugs, Coolant Fittings, O-rings
- Stainless Braided Coolant Lines, AN Fittings (water cooled turbo only)
- Stainless Braided -4AN Oil Feed Hose, AN Fittings
- Stainless Braided -10AN Oil Drain Hose
- Stainless Steel -10AN Turbo Drain Fitting
- Stainless Steel -10AN To Engine Block Fitting
- Silicone Charge Pipe
- You may purchase the kit with or without a wastegate. Wastegate Options include: Turbosmart Hypergate, TiAL MVR or PSR 45mm
LEAD TIME:
Lead time on a No Turbo Kit is generally 3 to 4 weeks.
GARRETT NOTES:
GTW and G-Series turbos all have mating parts that are specific to each line of turbo, so please be sure to choose the correct option for the turbo you plan to use. The GTW oil drain and oil feed will not fit a G-Series and vice-versa. *Please note that in 2023 we stopped offering a kit for the GTX Gen2 turbos, as they require a unique oil drain.
TURBO NOTES:
Turbine housing has to be a T4 inlet and 3" v-band outlet, and compressor housing has to be a 2.5" outlet.
S55 F8X KIT
