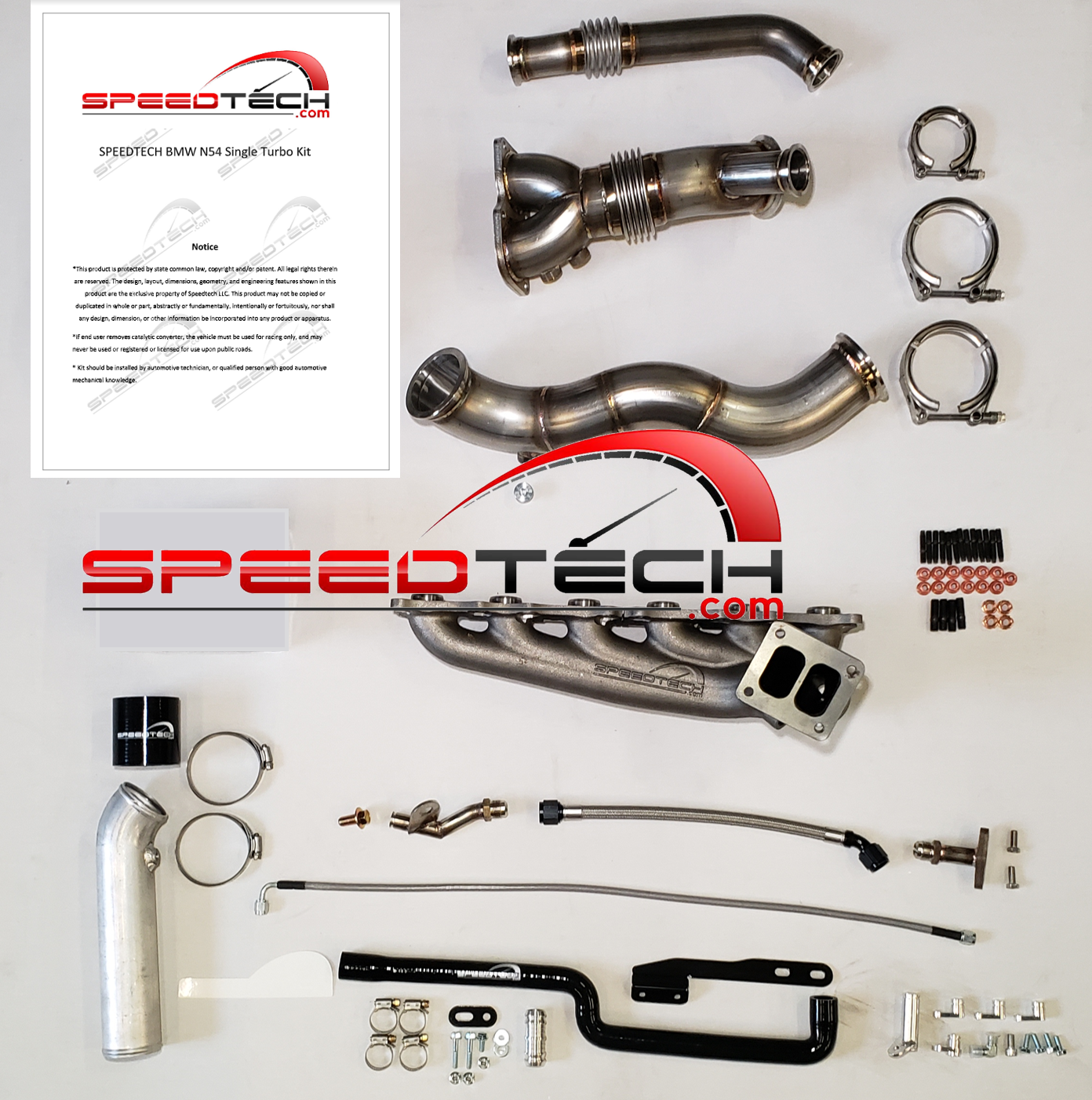

SPEEDTECH N54 NO TURBO RECIRCULATING WASTEGATE TOP MOUNT KIT

INCLUDED IN THE KIT:

• T4 Manifold with studs and nuts (Ceramic or Non-Ceramic options)

• 2 piece Stainless Steel Tubing (*If you will be fabricating your own and would like to delete our 2 piece downpipe parts from your order, email us for a discount code)
• Stainless Steel Recirculating Wastegate Pipe
• V-band clamps
• Billet CNC Aluminum Oil & Coolant Plugs, Coolant Fittings, O-rings
• Stainless Braided -4AN Oil Feed Hose, AN Fittings
• Stainless Braided -10AN Oil Drain Hose
• Stainless Steel -10AN Turbo Drain Fitting
• Stainless Steel -10AN To Engine Block Fitting
• Aluminum Charge Pipe
• Silicone Couplers
• Coolant Expansion Tank Relocation Kit
• You may purchase the kit with or without a wastegate. Wastegate Options include: (Turbosmart Hypergate, Turbosmart Hypergate Sleeper (Lite) TiAL MVR or PSR 45mm) * The Turbosmart Hypergate Sleeper Lite is our newest wastegate offering and it includes all wastegate springs

LEAD TIME:
Lead time on a No Turbo kit is generally 3 to 4 weeks.

BORGWARNER NOTES:
If using a BorgWarner S3xx turbo, the bigger compressor housings of the S3xx turbos have reduced clearance to the hood (around 3mm). With variability of motor mount isolator, thickness, age and other tolerances, fitment can be tight.

If you are sourcing your own BorgWarner SXE turbo, the turbine housing will need the 3" v-band, NOT the standard Marmon flange. The v-band mating face should be roughly on the same plane as the rear surface of the T4 flange. If the v-band position is located differently, you may find alignment issues with the tubing, and/or tubing to valve cover contact.

GARRETT NOTES:
GTW and G-Series turbos all have mating parts that are specific to each line of turbo, so please be sure to choose the correct option for the turbo you plan to use. GTW oil drain and feed will not fit a G-Series and vice-versa. *Please note that in 2023 we stopped offering a kit for the GTX Gen2 turbos, as they require a unique oil drain.

TURBO NOTES:
Turbine housing has to be a T4 inlet and 3" v-band outlet, and compressor housing has to be a 2" or 2.5" outlet.

The items installed or applied to vehicles are intended strictly foroff-road use onlyandtrack vehicles. These modifications may not comply with emissions, safety, or environmental regulations required for public road use underEnvironmental Regulatory Agency (ERA)laws. It is the sole responsibility of the vehicle owner or operator to ensure adherence to all applicable local, state, and federal regulations. Use on public roads may result in legal penalties or vehicle impoundment. Always verify compliance with local authorities before installation.

We get a large number of custom orders and requests everyday, so as a result it is not always possible for us to keep every item in stock at all times in our warehouse. If you require the item urgently please contact our sales team here to check the stock before you make your purchase.

If you're unsure whether a part will fit your vehicle, feel free tocontact us herewith your inquiry. Our helpful sales team will reach out to confirm if it's the right match for you.

We offer a flat-rate shipping fee across thecontinental United States. This excludes Alaska, Hawaii, and U.S. territories. For international orders, additional shipping costs will apply. Please contact us for a quote if you are outside the continental U.S.

Also, feel free to also contact us at ColoradoN5X@Gmail.Com for any other questions.

Not all items are covered by warranty. Items including warranty, will clearly state that there is warranty within the product description. Most of these items will be a standard 1-year warranty against manufacture defects. You, the customer, will be responsible for shipping and handling. We will fix/replace that item with a product that is in working condition if you meet the warranty criteria. Please note that you will be allowed ONLY 1 claim within the year for that product. ColoradoN5X is not responsible for any damage caused during the installation of our products.
