Click here for the Radium installation instructions (PDF)
Click here to watch an independent installation video
This oil catch can kit is compatible with all BMW 335i and 135i models with the 3.0L twin turbo N54 engine. Review the installation instruction link above before ordering.An oil catch can is essential on a performance vehicle to protect the engine from elevated levels of crankcase blow-by accumulated from aggressive driving. Excess oil saturated air circulating back into the air intake stream can lead to degraded performance. Radium Engineering's closed loop system does NOT vent to atmosphere (VTA), thus is emissions and track legal. Instead, clean filtered air routes back in through the engine to be burned and to promote negative crankcase pressure for optimal performance. Furthermore, a closed system prevents unwanted oil vapors entering into the cabin.

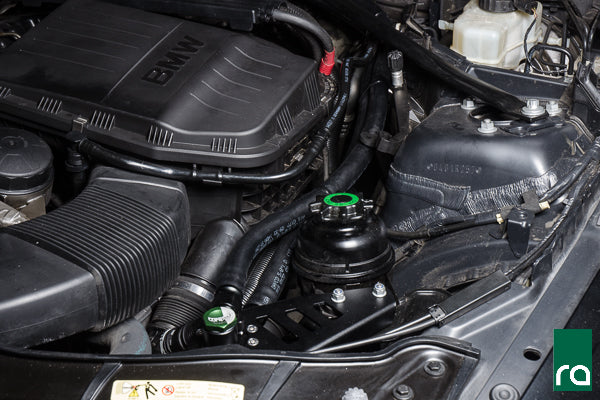

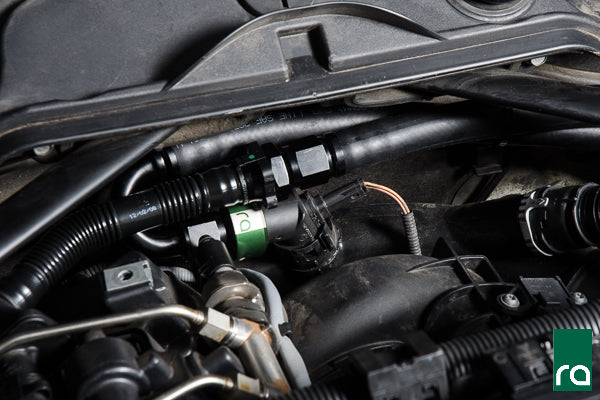

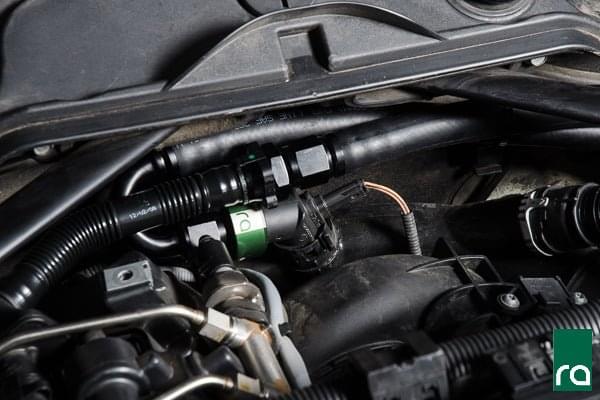

The kit secures to the OEM power steering reservoir mount with no cutting or drilling required.As shown below, this kit includes N54 specific billet -10AN adapter fittings eliminating the need to modify the OEM vent tubing.

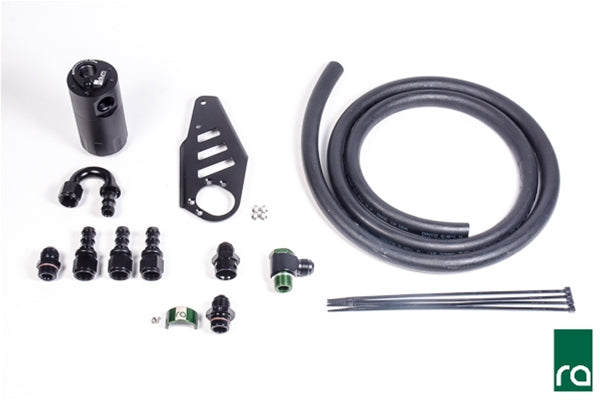

Includes:-Aluminum oil catch can with integrated dipstick-Aluminum laser cut BMW specific mounting bracket-Aluminum 10AN BMW specific PCV adapter fittings -Aluminum 10AN hose ends and adapter fittings-Enough 10AN PCV hose to work with modified vehicles-Stainless Mounting hardware
Features:
-Effectively raises the octane and increased engine performance from cleaner inlet air -Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc. -Excessive oil collection can be an indicator of a damaged engine.-Lowers hydrocarbon emissions -Capacity: 6 fluid ounces -Height (without fittings): 5 inches -Outside Diameter: 2.45 inches

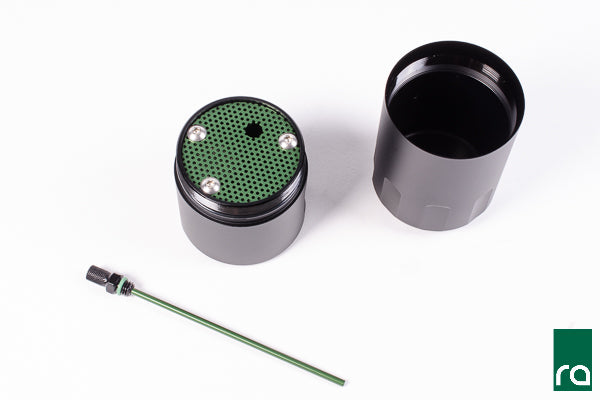

The stainless steel filtration media is cleanable and reuseable
Optional Petcock Drain Kit
-4AN ORB Barbed Fitting
-Nylon Mini Ball Valve
-PCV Compliant Rubber Hose
-OEM Style Spring Clamps
This kit, sold seperately, can be used to remotely drain the catch cans without the need to unscrew the canister body.
