N54 Integrated Oil Pressure Sensor Kit - COLORADO N5X
N54 Integrated Oil Pressure Sensor Kit - COLORADO N5X

NEXSYS MOTORSPORT

N54 Integrated Oil Pressure Sensor Kit

Sale price$189.99 USD
SKU: 6740-N54
Quantity:
Pickup available at CON5X DROPSHIP Usually ready in 2-4 days

N54 Integrated Oil Pressure Sensor Kit

CON5X DROPSHIP

Pickup available, usually ready in 2-4 days

11450 Cherokee Street
A-1
Northglenn CO 80234
United States

+17203008975

Worldwide Delivery. Express Shipping

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jamin
Awesome product! cheep sensor

Had this for about a year on my FBO N54 the other day I got a low oil pressure warning. Immediately shut the engine down and towed it to the shop thinking my level sensor must be faulty showing the engine is full of oil and having no oil leaks. It must be low on oil somehow. Drained oil and found it was actually full. Checked wires thinking its maybe a short. All good. Found the actual sensor had failed and the plastic part of the sensor was wiggling inside the metal. It’s a trash sensor. Get the oem 3 pin bmw oil pressure sensor. From like a n55 2012. If the plastic had failed and actually come out of the metal part I would have actually lost oil pressure to the engine, not to mention the mess. I highly recommend this kit for the function of the MSD monitoring oil pressure. But get yourself a good sensor. Hopefully they have upgraded it in newer kits as I bought it as soon as it came out. My $0.02 my sensor had clear rubber between the plastic and metal.

Nexsys Motorsport Integrated Oil Pressure Sensor kit for BMW N54 engines

* INITIAL RELEASE SALE PRICE OF $169.99 THROUGH 12/31/2022 ($199.99 AFTER) *

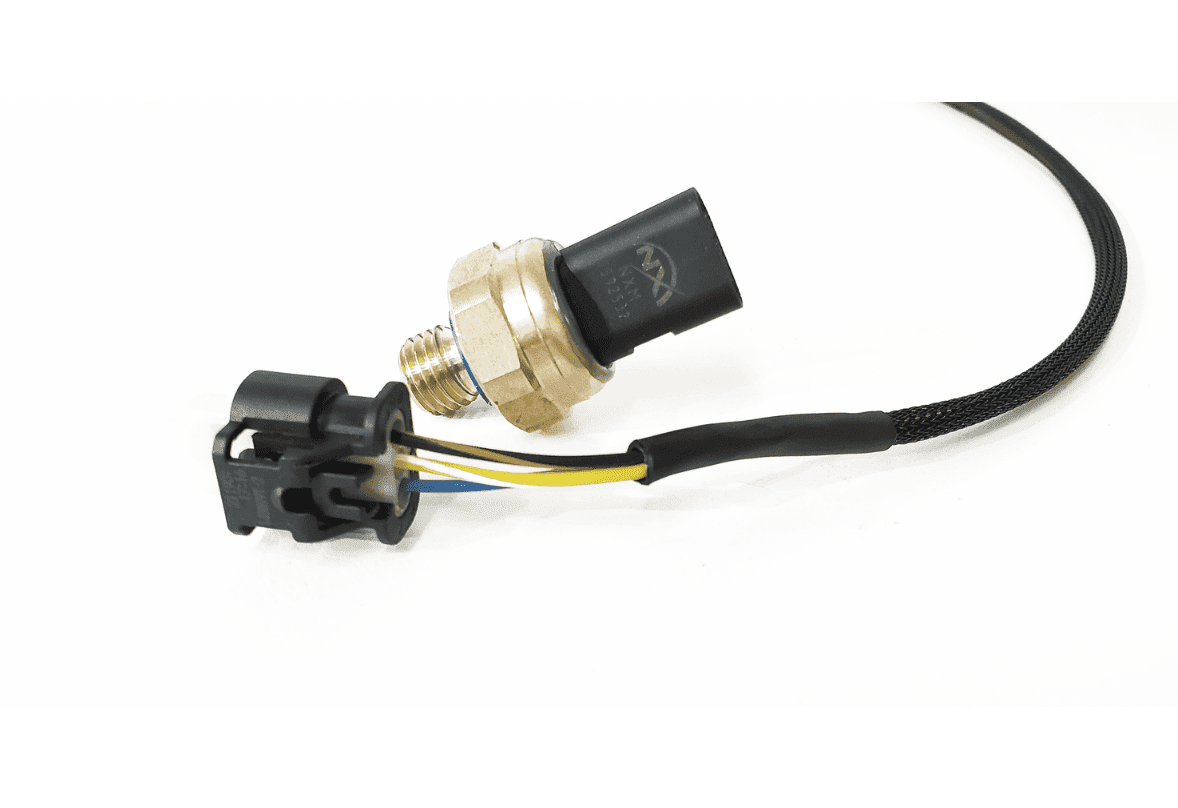

This kit allows you to replace the oil pressure switch on your BMW N54 engine with an oil pressure sensor that is connected to the DME and integrated into the MHD Tuning app. This allows for configurable oil pressure thresholds & delays, two audible & visual alert types, a configurable RPM limiter when oil pressure is low & data logging in the MHD app. The first alert stage is "Warning", this alert is immediately displayed when oil pressure dips below normal but is still sufficient to protect the engine. The "Warning" alert will display on the vehicles dash and I-drive with an orange oil can. The "Critical" alert stage is activated after oil pressure has dropped further and is no longer sufficient enough to protect the engine. The "Critical" alert will display on the vehicles dash and I-drive with a red oil can. A configurable RPM limiter can be enabled when oil pressure enters the "Critical" alert stage to further protect the engine and draw drivers attention to the dash.

In the past adding an oil pressure sensor to your N54 required over $250 in gauges, t-blocks, adapters, hoses & wires. Often the installation requires feeding wires through the firewall of the vehicle and mounting a standalone gauge. That's all changed now with our plug & play harness. Simply remove the existing oil pressure switch and replace it with the included oil pressure sensor; Plug our harness into the sensor and the DME; Flash your existing tune/map with the MHD app and select the "NXM Oil Pressure Sensor" flash option.

Our plug & play harness is assembled in the USA from premium materials. For the harness we use US made TXL copper wire, PET sleeving and is strain relieved with Raychem SCL heatshrink.

This kit comes with the following:

  • Oil Pressure Sensor
  • Plug & Play Harness
  • License Key for activating the software inside the MHD Tuning app

A short demonstration of the "Critical" dash warning can be seen by clicking here.

Installation guide available by clicking here.

NOTE: You must have and use MHD Tuning to flash your vehicle for this kit to work.
