Features & Benefits
-

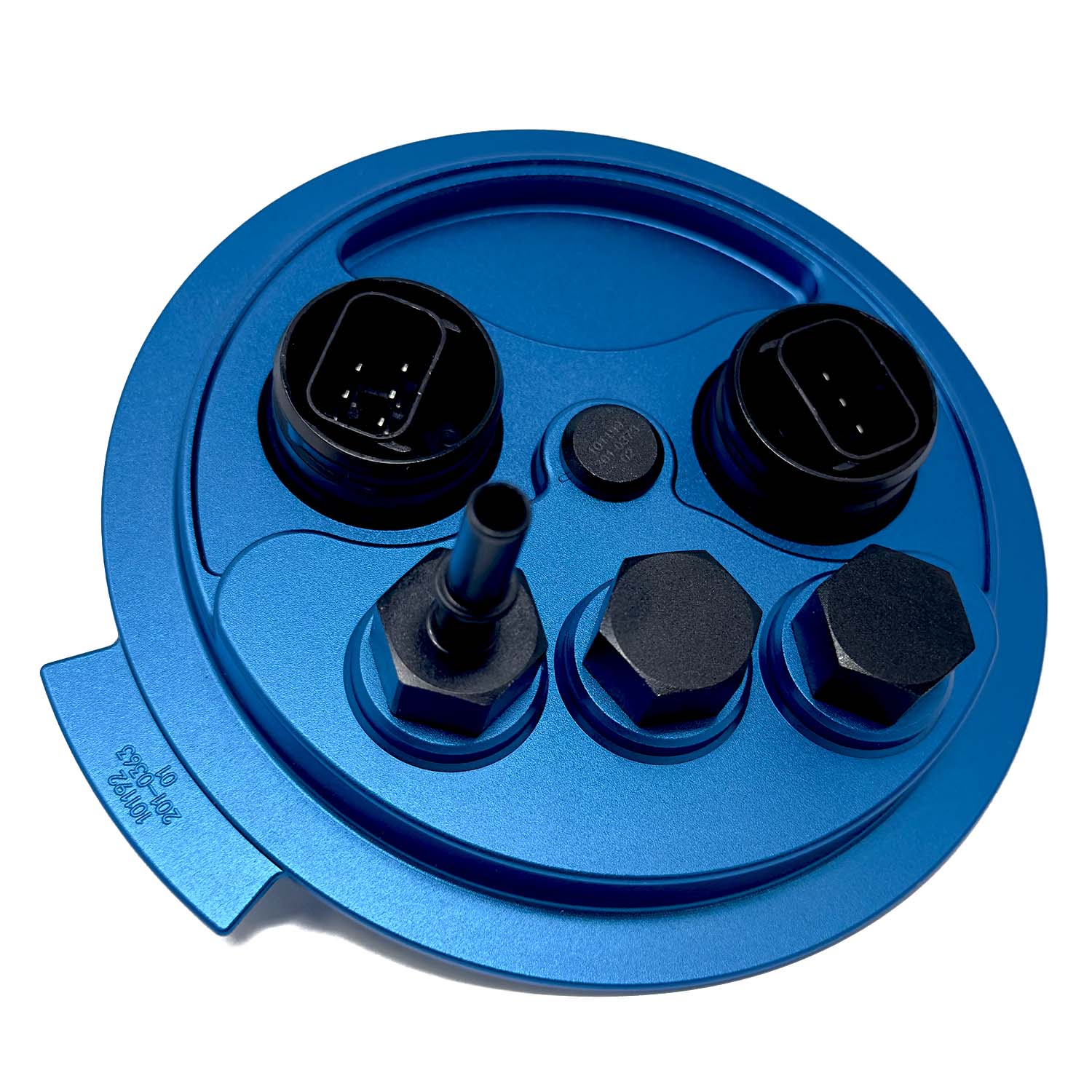

Billet Aluminum top hat with 3 high flow fuel ports (optional - 1 included)
-
Ability to run dedicated fuel pump(s) for port injection system
-
Compatible with adjustable 1:1 scaling fuel pressure regulator
-
Fully sealed quick connect style high current electrical connectors
-
All billet fuel fittings when using AN8 or Quick Connect Options
-
Increased injector flow (when using 1:1 regulator feature vs static)
-
Compatible with all stock or upgraded primary fuel pumps*
- Modular design allows for AN8 or quick connect connection styles
-
All components compatible with Gasoline, Methanol, & Ethanol
- Compatible with sensor on tophat (Not all vehicles have this sensor)
*Note when connecting to some performance fuel pumps, additional PTFE lines and fittings may be required. Contact us if you need assistance purchasing these items.
Main Items Included
- Billet Tophat

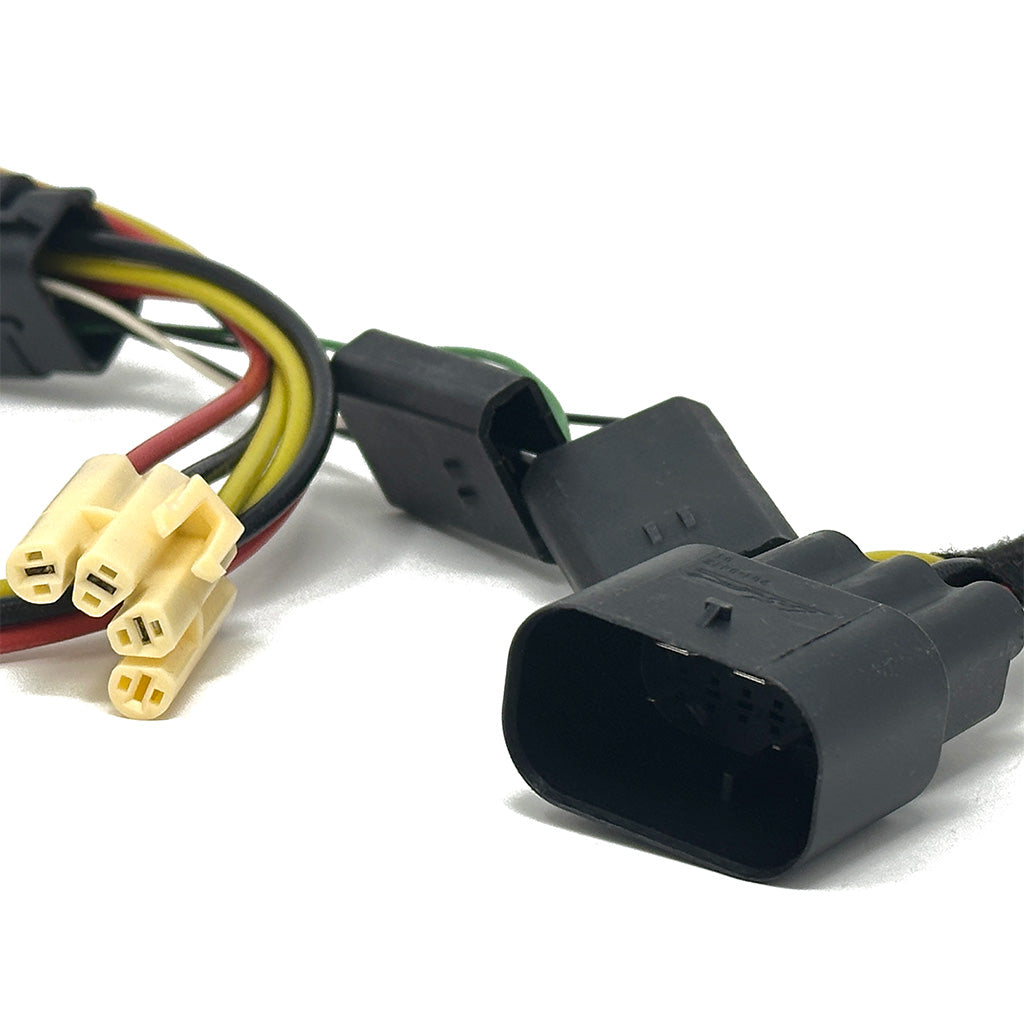

- Two Electrical bulkheads with connectors (6 wires ea)

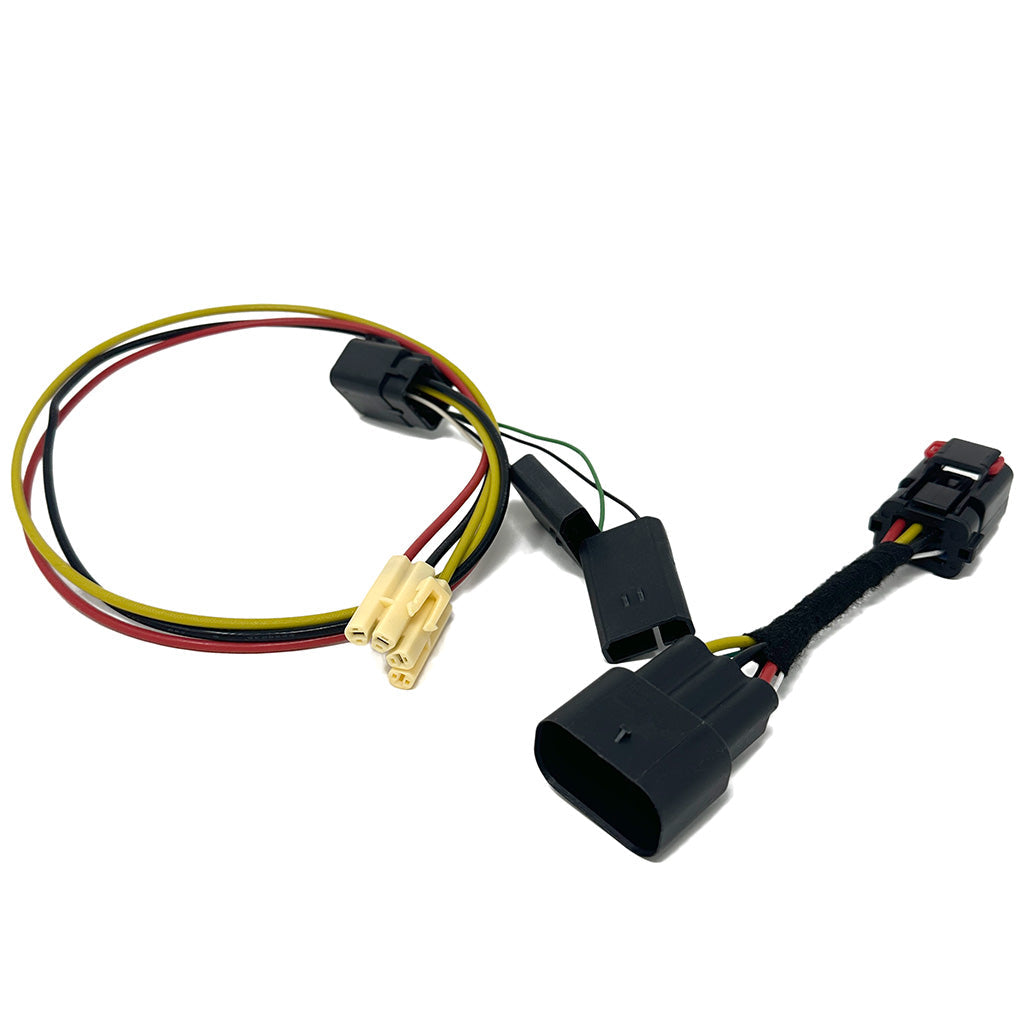

- Two electrical connectors pre-wired to run factory pump and floats
- Two electrical connectors pre-wired for single 2-wire pump (additional wires and terminals sold separately)
- One 3/8" male quick connect output (compatible with factory line)
- One 7.89mm male quick connect for in the tank
- One PTFE line for in tank with 7.89 quick connect (for factory filter)
- Two accessory port block off plates
- One sensor mounting bracket (not needed on all cars)
Optional Accessories
-
Proprietary full flow low profile AN8 Bulkhead set
-
Loose electrical terminals compatible with our connectors
-
Pre-crimped pigtail electrical wires compatible with all fuels
-
90 degree billet quick connects for AN6 Fuel line
-
Smooth bore PTFE Fuel line by the inch
-
All fuel compatible electrical wire by the inch
OEM Pump Wiring: Included - Requires posi-taps or T-Taps
Secondary Pump Wiring: Included for 1 additional pump
Included Pump Output: 9.49mm (3/8") male quick connect (fits oem fuel line)
- Bmw 540i 2017 to 2023
- Bmw 540ix 2017 to 2023
- Bmw 640ix 2018 to 2020
- Bmw 740i 2016 to 2023
- Bmw 740ix 2016 to 2022
- Bmw 840i 2020 to 2023
- Bmw 840ix 2020 to 2023
- Bmw M2 2023
- Bmw M240i 2023
- Bmw M240i Xdrive 2022 to 2023
- Bmw M3 2021 to 2023
- Bmw M340i 2019 to 2023
- Bmw M4 2021 to 2023
- Bmw M440i 2021 to 2023
- Bmw M440ix 2021 to 2023
- Bmw M550ix 2020 to 2023
- Bmw M850ix 2019 to 2023
- Bmw X3 M 2019 to 2023
- Bmw X3 M40ix 2018 to 2023
- Bmw X4 M 2019 to 2023
- Bmw X4 M40ix 2018 to 2023
- Bmw X5 M 2020 to 2023
- Bmw X6 M 2020 to 2023
- Bmw Z4 M40i 2019 to 2023
- Toyota Supra 2019 to 2023
