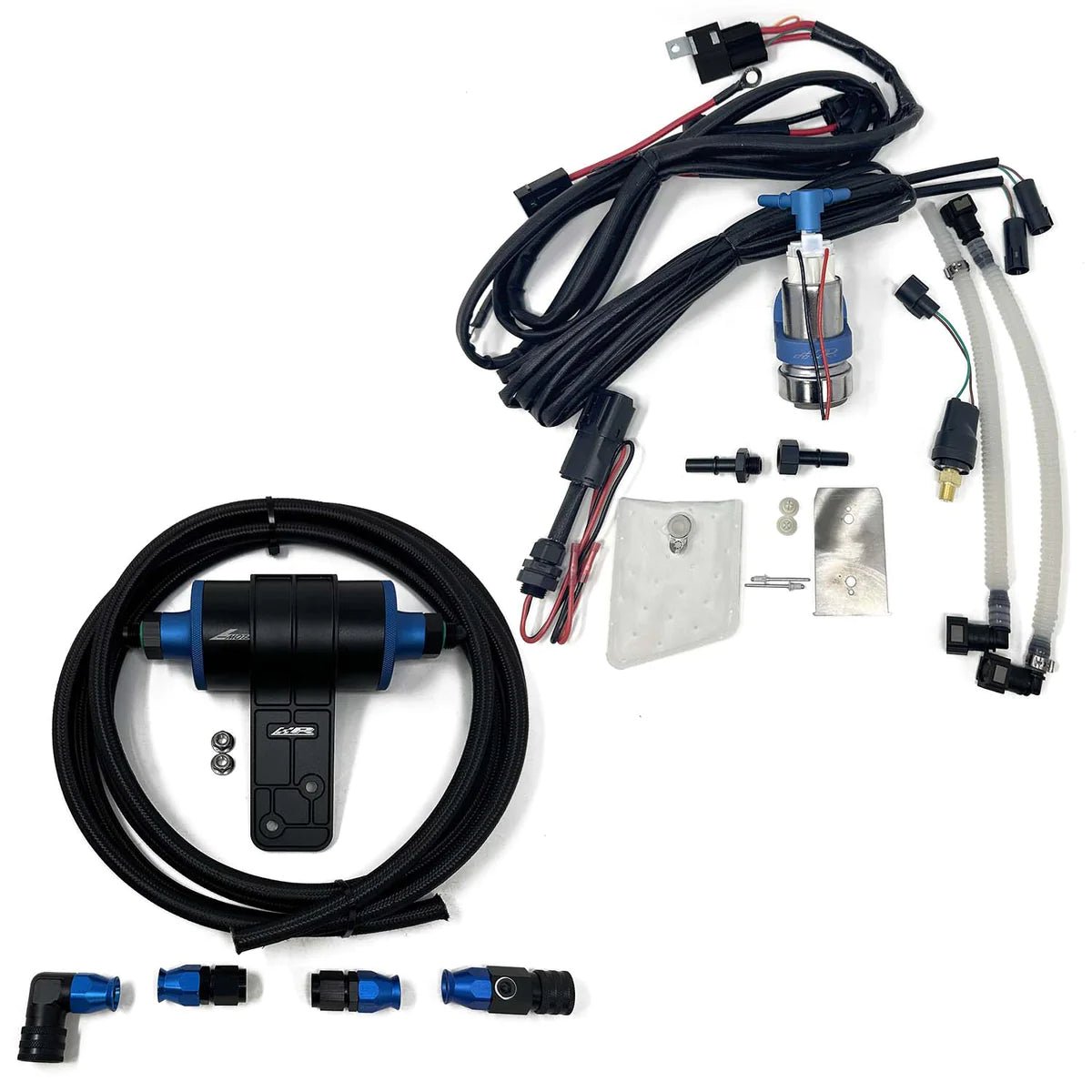

G8x / F9x S58 Upgraded Hybrid Primary Fuel Pump

The Precision Raceworks G-Series High Performance Primary fuel pump (Kits) are designed for customers looking to run all blends of E85. These pumps are ideal for customers looking to run a single fuel line to the front of the car and feed the high-pressure fuel pump and port injection from a single pump assembly.  (For B58 cars click here)



Alternative Pump Option by Precision Raceworks:

For G8x or G2x customers wishing to run the best check out our Stand Alone Auxiliary Fuel System!



Caution!

Many other companies selling pumps are not protecting your high-pressure fuel pump or direct injectors with their fuel pump options.  When comparing other brand pumps to Precision Raceworks ensure there is a fuel filter in the system after all electric pumps either in the tank or in the fuel line. Companies using a Y fitting to join the factory pump (after the factory filter) and an additional pump before going to the top hat and not including an inline fuel filter are cutting corners and will cause premature failure to the high-pressure fuel pump and direct injectors.



• Stage 2 ( 450 LPH @ 5 Bar) 50% increase over stock
  Our Stage 2 bucketed/bucketless hybrid fuel pump kit includes all necessary components to quickly and easily upgrade your stock pump. This pump kit utilizes the OEM brushless pump in the bucket and adds a Walbro 450 (F90000274) fuel pump outside the bucket.  Rated for 850whp on pump gas and 800whp on 100% E85

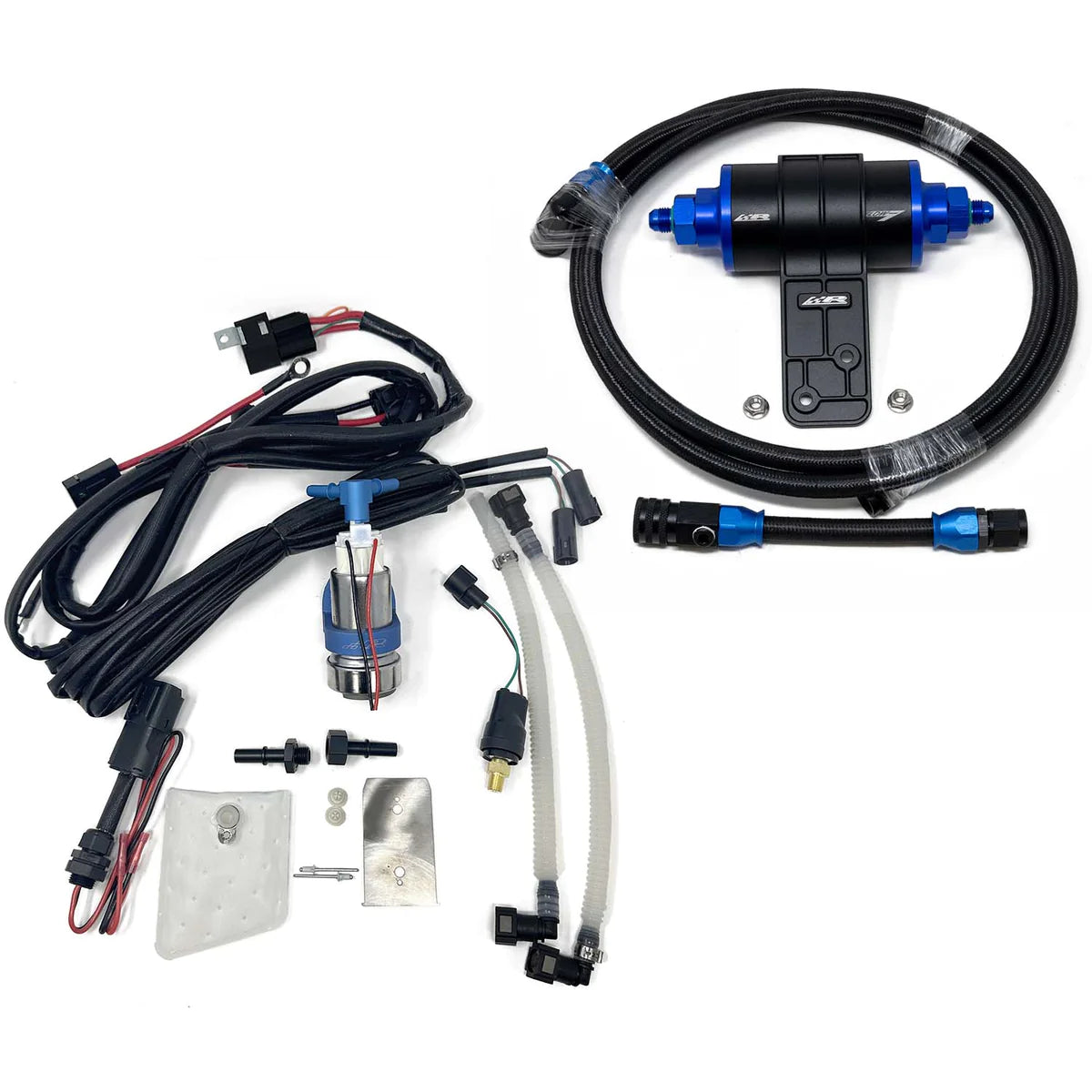

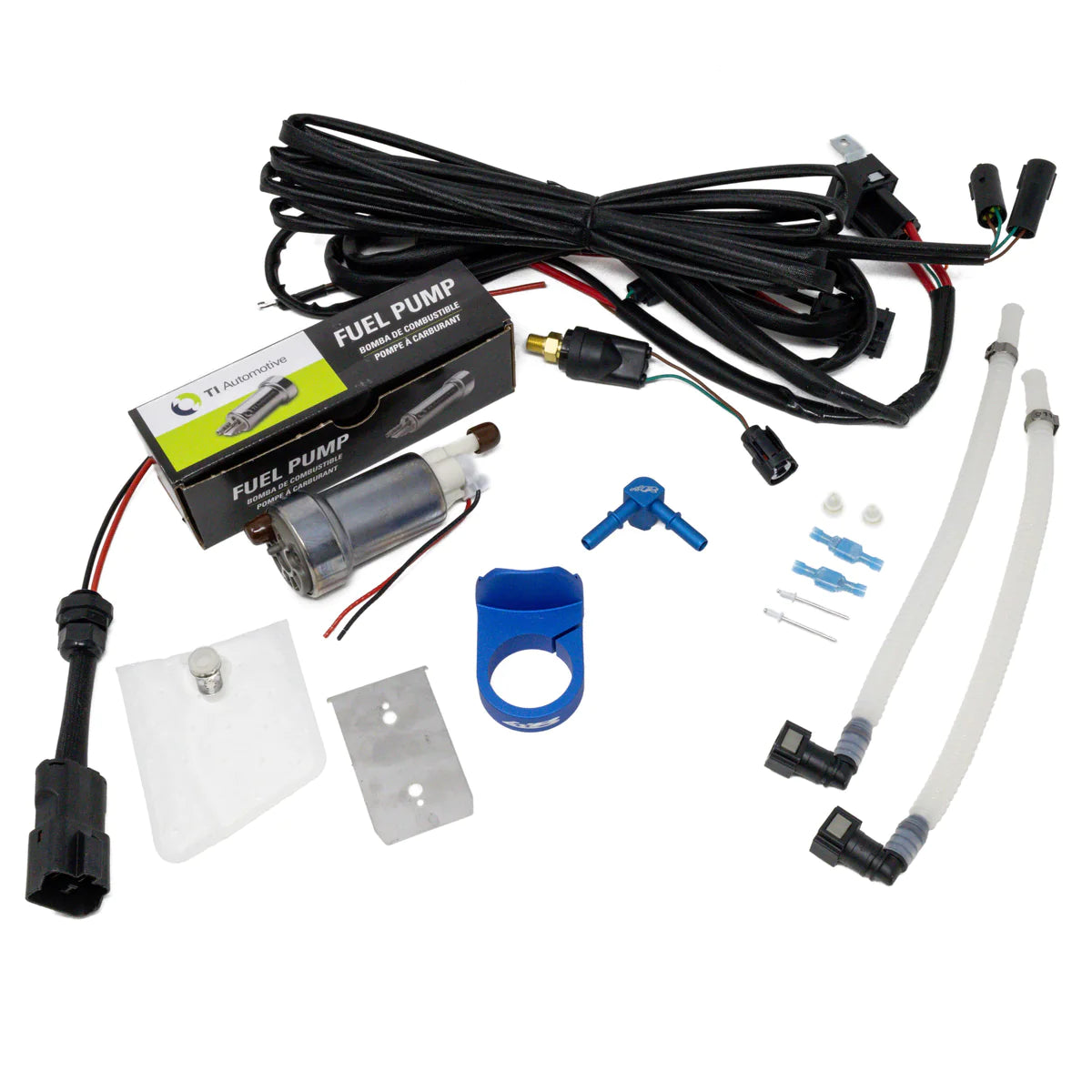

• Included in the box
• Walbro 450 (F90000274 fuel pump)
• Billet Fuel Pump mounting bracket
• Pump activation harness to control fuel pump

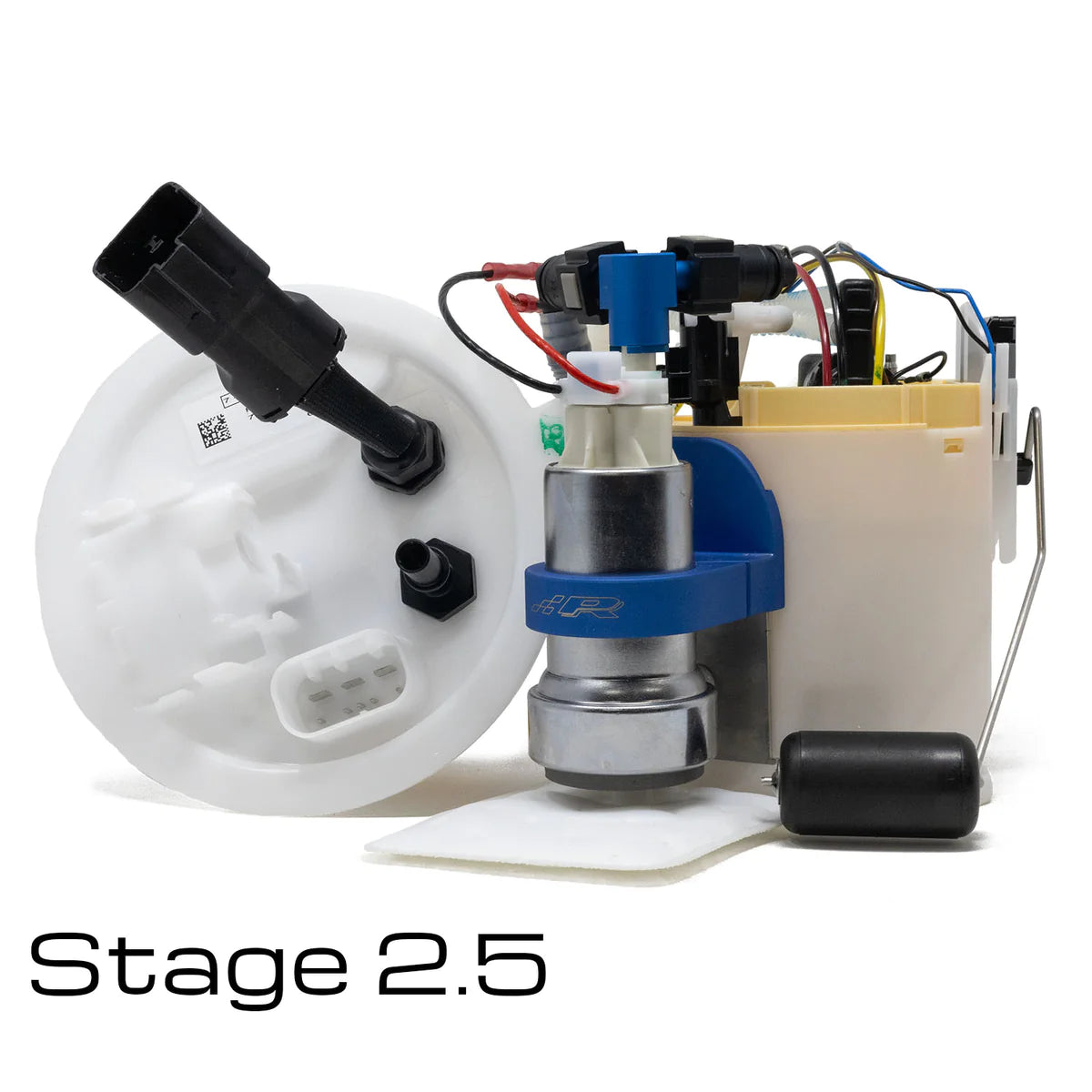

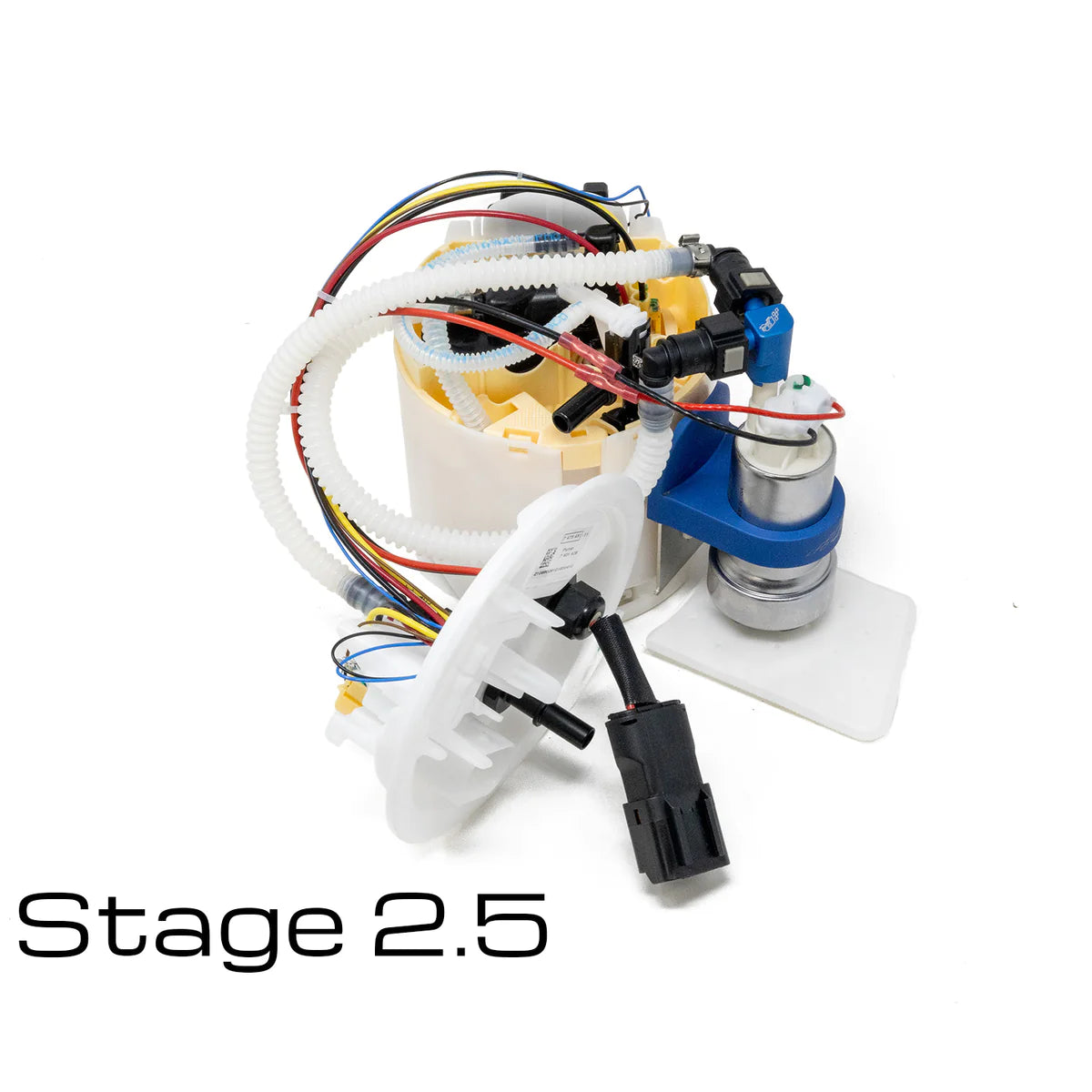

• Stage 2.5 (486 LPH @ 5 Bar) 62% increase over stock
  Our Stage 2.5 bucketed/bucketless hybrid fuel pump kit includes all necessary components to quickly and easily upgrade your stock pump. This pump kit utilizes the OEM brushless pump in the bucket and adds a Walbro 525 (F90000285) fuel pump outside the bucket. Rated for 950whp on pump gas and 900 whp on 100% E85


• Included in the box
• Walbro 525 (F90000295 fuel pump)
• Billet Fuel Pump mounting bracket
• High flow fuel quick connects for top hat
• *Upgraded fuel line from tank to front of car
• G8x Lines are pre-made and plug & play
• All others are universal
• 10 Micron USA made inline fuel filter
• Pump activation harness to control fuel pump





* Fuel line is a universal line set and may or may not be ideal for your specific application.  It contains 110" of fuel line, a 90 degree 3/8" female quick connect, a straight female 3/8" quick connect and two straight AN6 fittings.  YOU MUST CUT AND INSTALL YOUR OWN (included) FITTINGS.

For more details see the specifications tab



Specifications

Factory BMW S58 Pump

• Pump flow 72psi (5bar): 300 LPH*

• Pump Weight:

• Horsepower Supported Pump Gas:

• Horsepower Supported 100% E85:

Stage 2

• Pump flow 72psi (5bar): 450 LPH*

• Pump Weight: 3.8 lbs (added)

• Horsepower Supported Pump Gas: 850

• Horsepower Supported 100% E85: 800

• Aftermarket EKP Required: No


Stage 2.5

• Pump flow 72psi (5bar): 486 LPH*

• Pump Weight: 3.8 lbs (added)

• Line Weight: 2.5 lbs
• Horsepower Supported Pump Gas: 950

• Horsepower Supported 100% E85: 900

• Aftermarket EKP Required: No



*All pump flow testing performed at 13.5volts

Instructions

Stage 2 - Click Here for PDF instructions

Stage 2.5 - Click Here for PDF Instructions
