G-Series BMW & Supra A9x Billet Fuel Pump Top Hat.
G-Series BMW & Supra A9x Billet Fuel Pump Top Hat.
G-Series BMW & Supra A9x Billet Fuel Pump Top Hat.
G-Series BMW & Supra A9x Billet Fuel Pump Top Hat.
G-Series BMW & Supra A9x Billet Fuel Pump Top Hat.

Precision Raceworks

G-Series BMW & Supra A9x Billet Fuel Pump Top Hat

Sale price$299.99 USD
Automatic sale price: $276.00 USD Available now — no code needed — discount applied at checkout.
SKU: 601-0316
Quantity:
Pickup available at CON5X DROPSHIP Usually ready in 2-4 days

G-Series BMW & Supra A9x Billet Fuel Pump Top Hat

CON5X DROPSHIP

Pickup available, usually ready in 2-4 days

11450 Cherokee Street
A-6
Northglenn CO 80234
United States

+17203008975
Verify fitment with your vehicle Check vehicle details

Check the product details for exact year, engine, and trim requirements.

Worldwide Delivery. Express Shipping

NOW FEATURING PLUG AND PLAY CONNECTORS

Now it is no longer necessary to cut your factory harness!

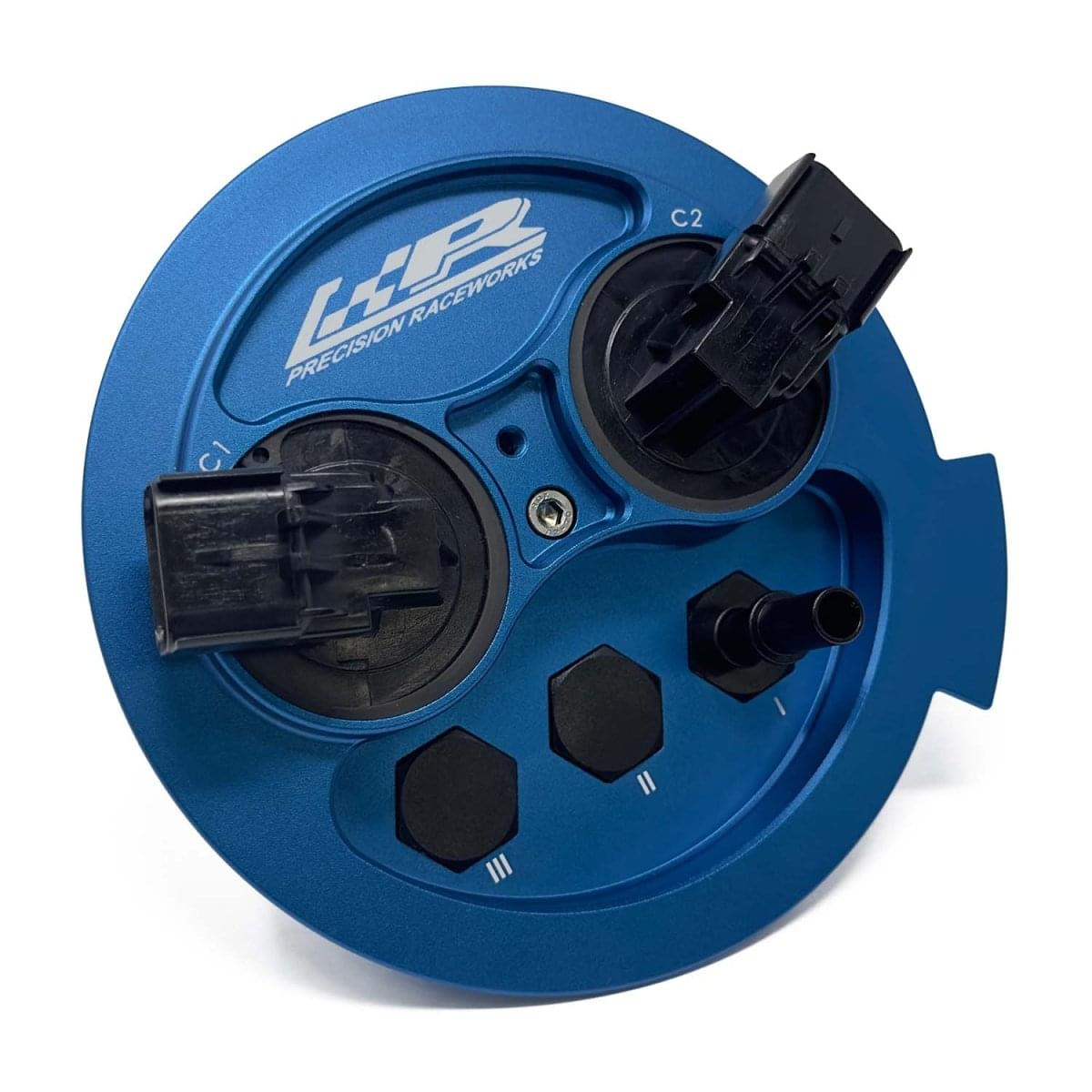

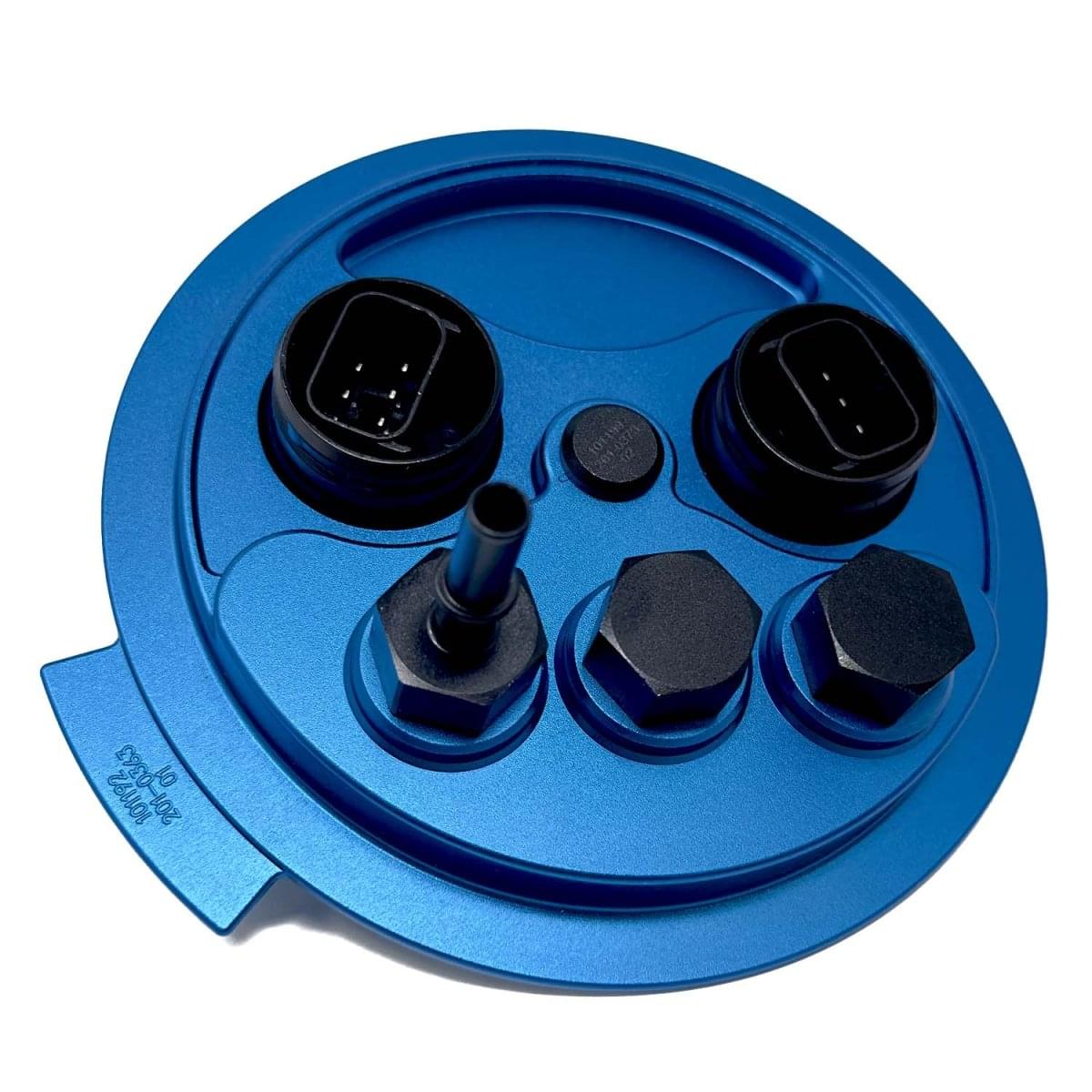

The Precision Raceworks BMW G-Series and A9x Toyota Supra Billet Tophat is a great way to get the most out of any fuel system! With up to 3 dedicated high flow modular ports and up to 12 wires, there are countless ways you can configure your pump setup to meet your needs!





Features & Benefits

  • Billet Aluminum top hat with 3 high flow fuel ports (optional - 1 included)
  • Ability to run dedicated fuel pump(s) for port injection system
  • Compatible with adjustable 1:1 scaling fuel pressure regulator
  • Fully sealed quick connect style high current electrical connectors
  • All billet fuel fittings when using AN8 or Quick Connect Options
  • Increased injector flow (when using 1:1 regulator feature vs static)
  • Compatible with all stock or upgraded primary fuel pumps*
  • Modular design allows for AN8 or quick connect connection styles
  • All components compatible with Gasoline, Methanol, & Ethanol
  • Compatible with sensor on tophat (Not all vehicles have this sensor)

 *Note when connecting to some performance fuel pumps, additional PTFE lines and fittings may be required.  Contact us if you need assistance purchasing these items.

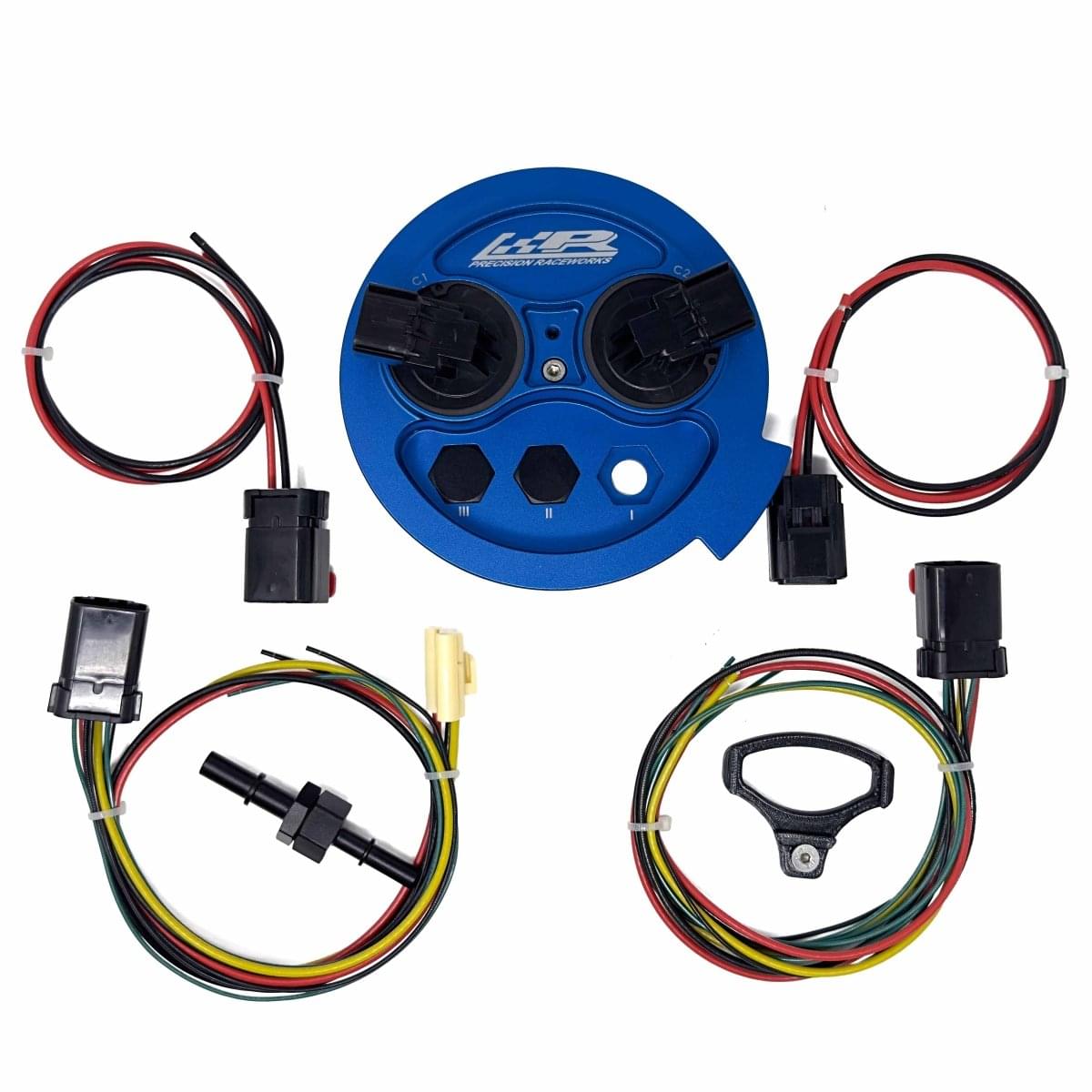

    Main Items Included

    • Billet Tophat
    • Two Electrical bulkheads with connectors (6 wires ea)

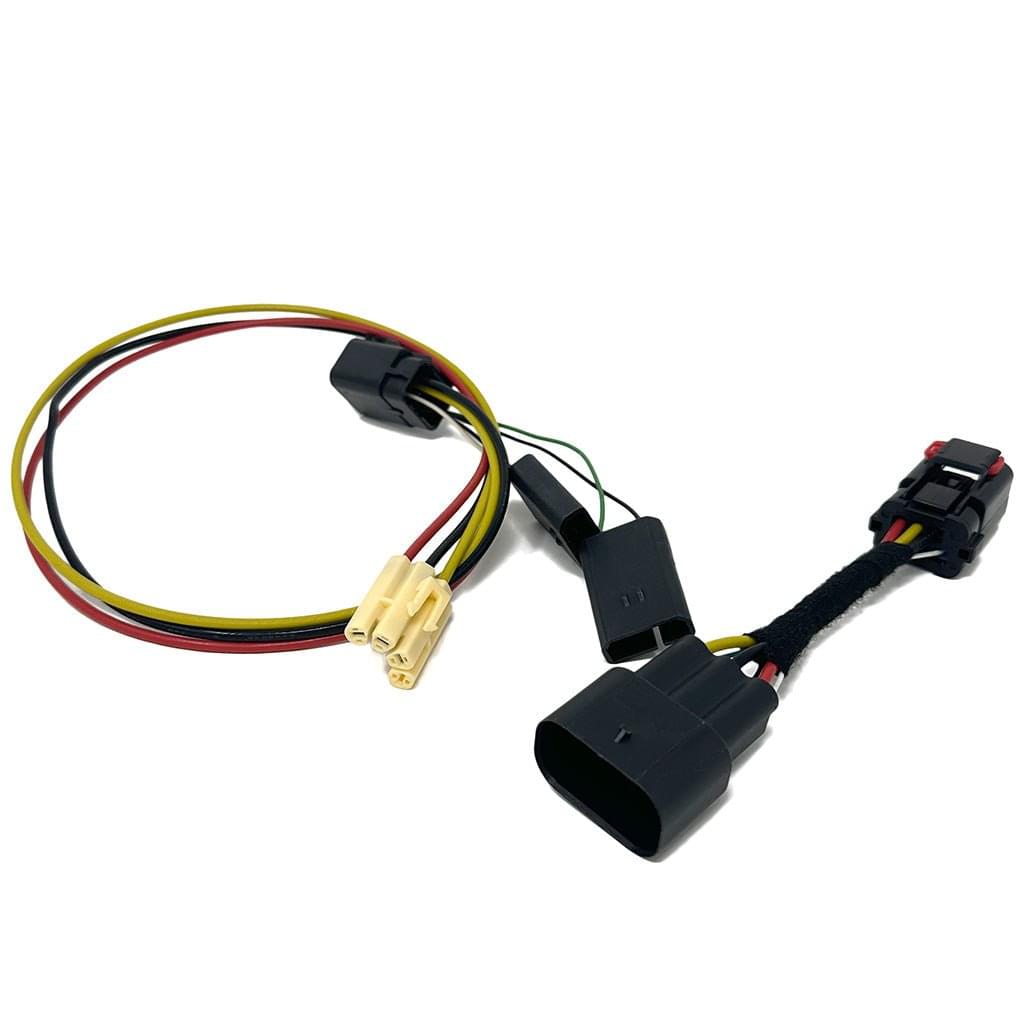

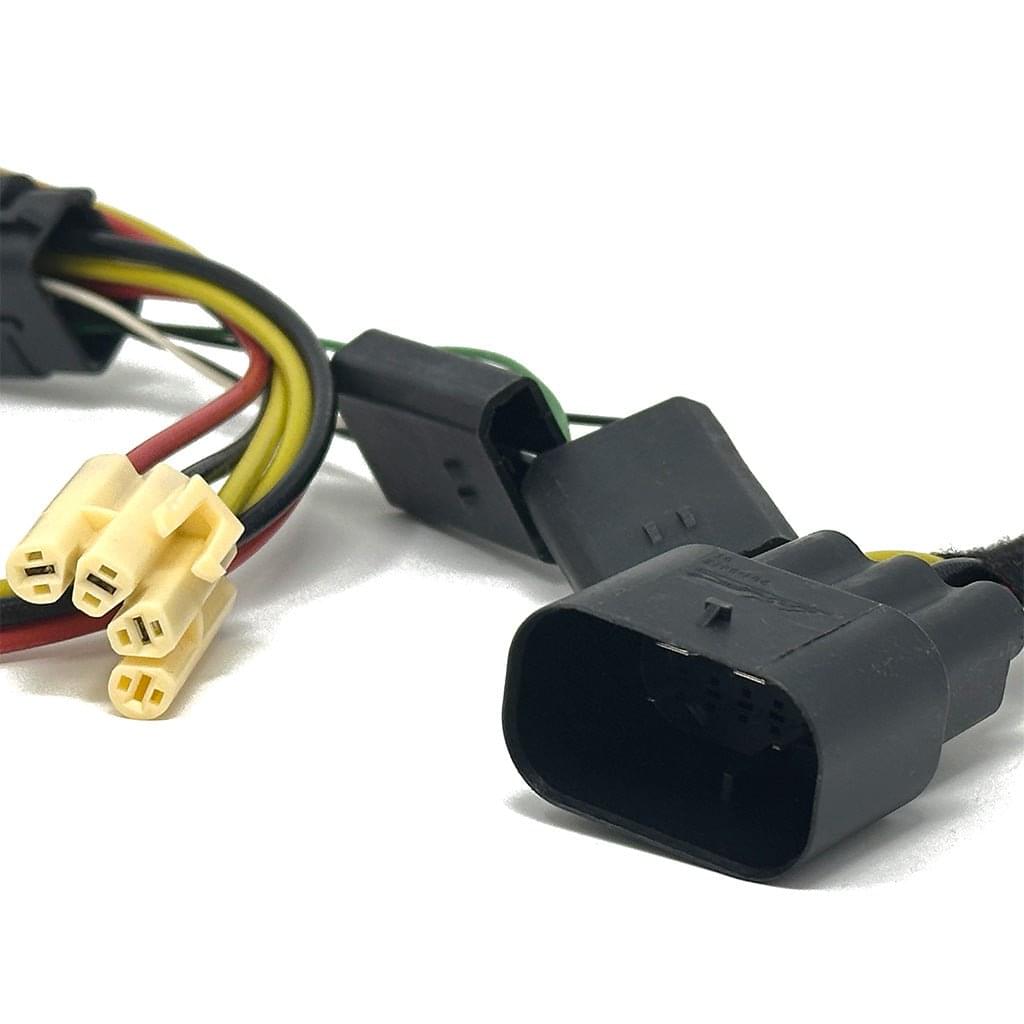

    • Two electrical connectors pre-wired to run factory pump and floats
    • Two electrical connectors pre-wired for single 2-wire pump (additional wires and terminals sold separately)
    • One 3/8" male quick connect output (compatible with factory line)
    • One 7.89mm male quick connect for in the tank
    • One PTFE line for in tank with 7.89 quick connect (for factory filter)
    • Two accessory port block off plates
    • One sensor mounting bracket (not needed on all cars)


    Optional Accessories

    • Proprietary full flow low profile AN8 Bulkhead set
    • Loose electrical terminals compatible with our connectors
    • Pre-crimped pigtail electrical wires compatible with all fuels
    • 90 degree billet quick connects for AN6 Fuel line
    • Smooth bore PTFE Fuel line by the inch
    • All fuel compatible electrical wire by the inch
