Eventuri BMW F Chassis B58 M140i/M240i/M340i - Black Carbon Intake

Eventuri

$1,295.00

Shipping calculated at checkout

Available Now!

A+
Rating

BEST PRICES

Guaranteed

WORLDWIDE

Shipping

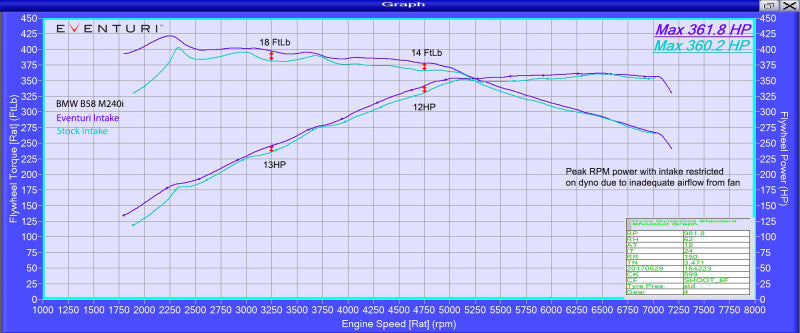

Performance Increase : 12-15hp, 14-18ft-lb

The B58 Eventuri intake system is another example of a “Complete System” principal. It demonstrates the perfect balance between allowing for unrestricted airflow with our open filter housing whilst maintaining low IAT by cold air saturation with our scoop and shield combination. Every detail has been meticulously developed from the prepreg carbon pieces to the double layer heat shields. This intake sets a new benchmark in design and craftsmanship for the B58 platform.

The B58 Eventuri system uses a Patent Pending Carbon fiber Housing which provides an aerodynamically efficient airflow path from the filter to the turbo. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect and maintains laminar flow conditions to reduce the drag on the turbo.

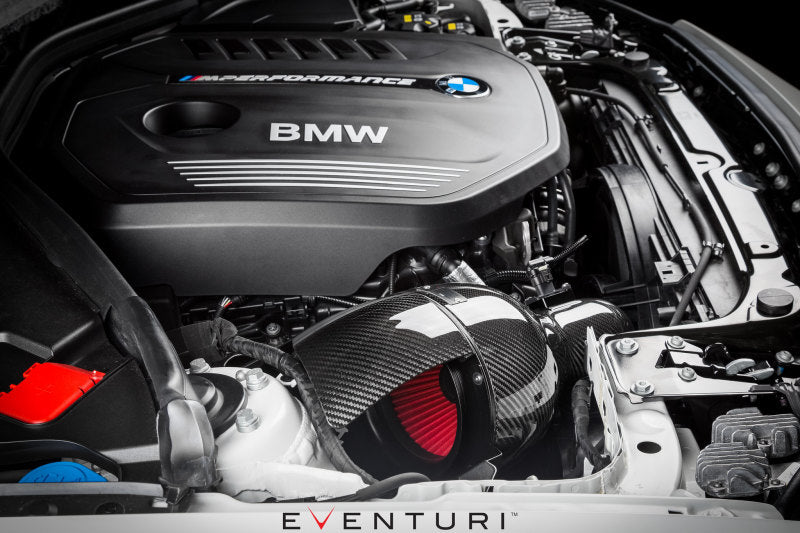

The filter housing comprises of a high flow filter, aluminium cowl, laser cut bracket, carbon heat shroud and the carbon pod itself, which extends to incorporate the MAF sensor and turbo tube. The carbon pod shrouds the reverse mounted filter and smoothly shapes the airflow down to the integrated MAF intake tube. This smooth reduction in cross sectional area invokes the Venturi effect where the airflow accelerates whilst maintaining laminar conditions. It can be thought of as a large velocity stack. The carbon filter housing and the inlet tube have been integrated to be one continuous piece. This reduces the number of internal interfaces and allows for smoother airflow to the turbo. The diameter of the tube smoothly transitions from the required diameter at the MAF sensor end to the larger diameter of the turbo inlet.

A lot of attention was placed on the heat shielding since the intake is located next to the exhaust manifold. For this Eventuri used a double layer main shield with a silver finish on the exhaust side and black on the intake side. The silver layer reflects radiant heat from the exhaust and the black layer absorbs and radiant heat on the inlet side. The air gap between the two layers acts as an insulator to stop the conductive heat spreading to the inner layer.

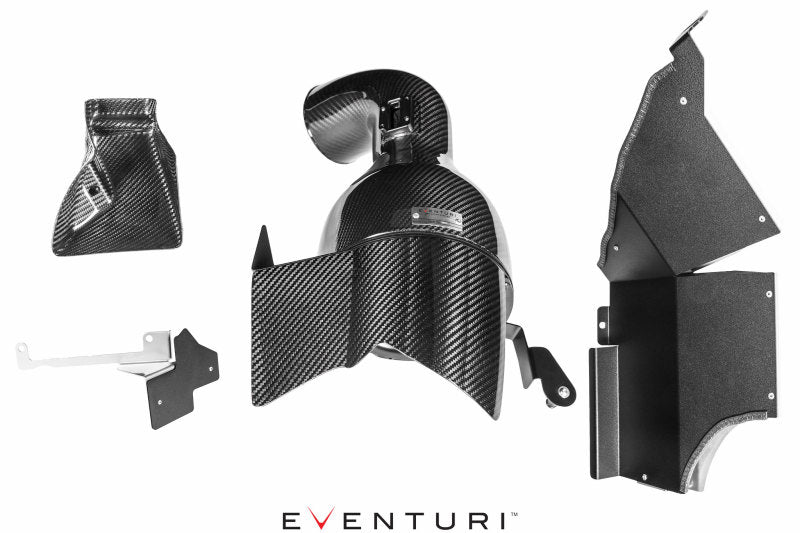

Each intake system includes:

  • Prepreg Carbon Filter Housing and integrated MAF tube
  • High Flow Double Cone Air Filter
  • Aluminium Cowl for smooth airflow entry
  • Prepreg Carbon Scoop
  • Prepreg Carbon filter shroud
  • CNC Machined MAF Boss
  • Double layer main heat shield
  • Double layer secondary shield
  • Laser Cut Mounting Brackets
