E60 535i 535xi 7" FMIC KIT - COLORADO N5X

Roll over image to zoom in Click on image to zoom

30 Day Money-Back Guarantee | IN STOCK

HIGHLIGHTS

Name: E60 535i 535xi 7" FMIC KIT
Brand: ARM Motorsports
SKU: 6678-E60
Price: 547.00 USD
Availability: InStock

• Gain up to 35whp/38wtq
• Increased Cooling Efficiency
• Reliable Performance

PROFILE

At 805 cubic inches the ARM Motorsports E60 535i 7” FMIC provides a significant increase in cooling efficiency over the stock 535i intercooler and the perfect intercooler upgrade for the N54 powered E60 535i maxing out the stock turbos or running a turbo upgrade. With almost a 30% increase in size over our 5" intercooler upgrade, our 7" FMIC a respectable step up in overall volume for handling higher boost applications where the IAT's can rise quickly.

CONSTRUCTION

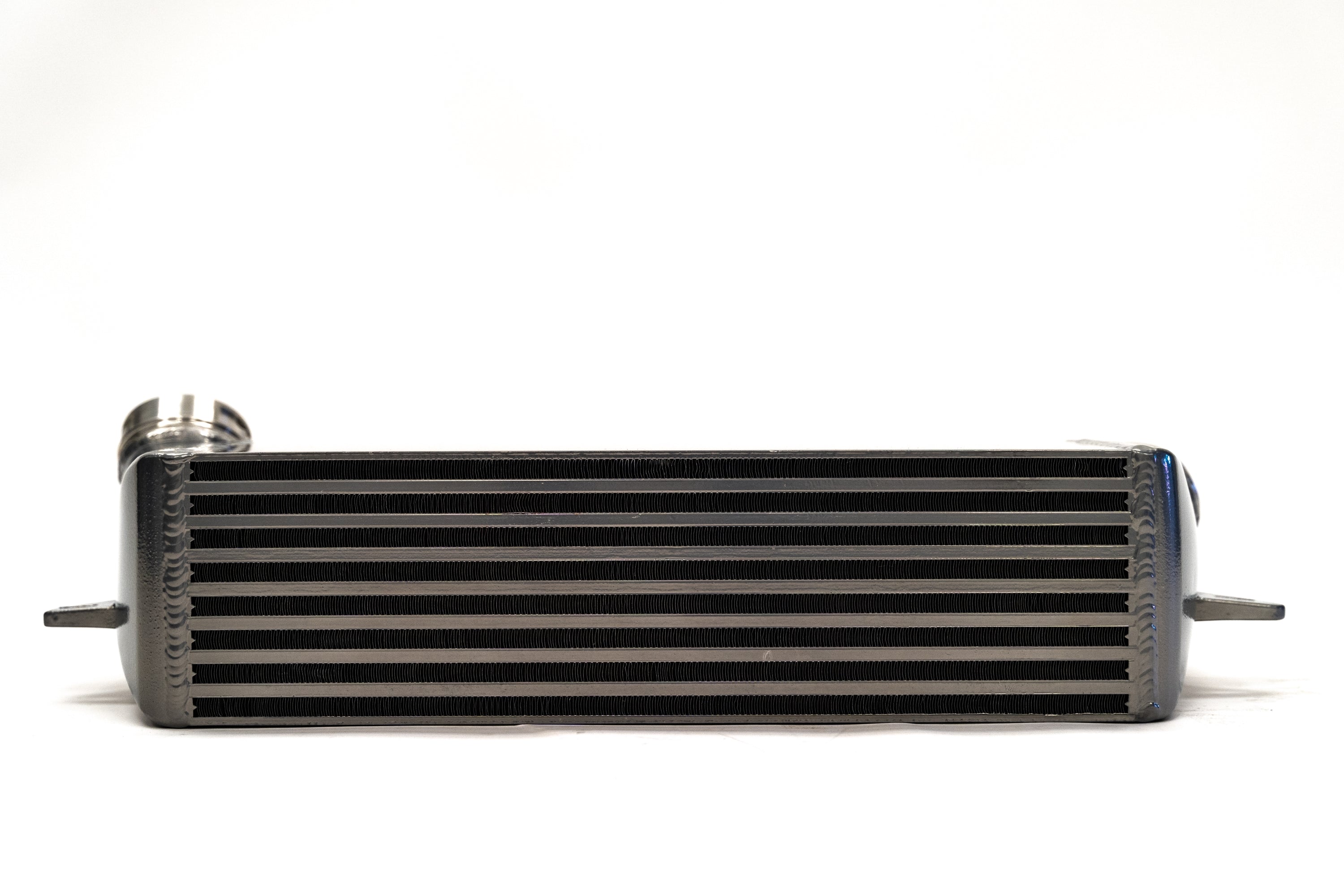

At the heart of the ARM 7” FMIC is the intercooler core with our all new ULTRA-Dense fin packs. With 18 fins per inch, the ARM 7” FMIC is at the top of its class for core density and cooling performance. Not surprisingly, it can cool the charged air of your 535i as efficiently as intercoolers larger than it, without the pressure loss associated with those larger intercooler upgrades.

335i Intercooler 7in FMIC

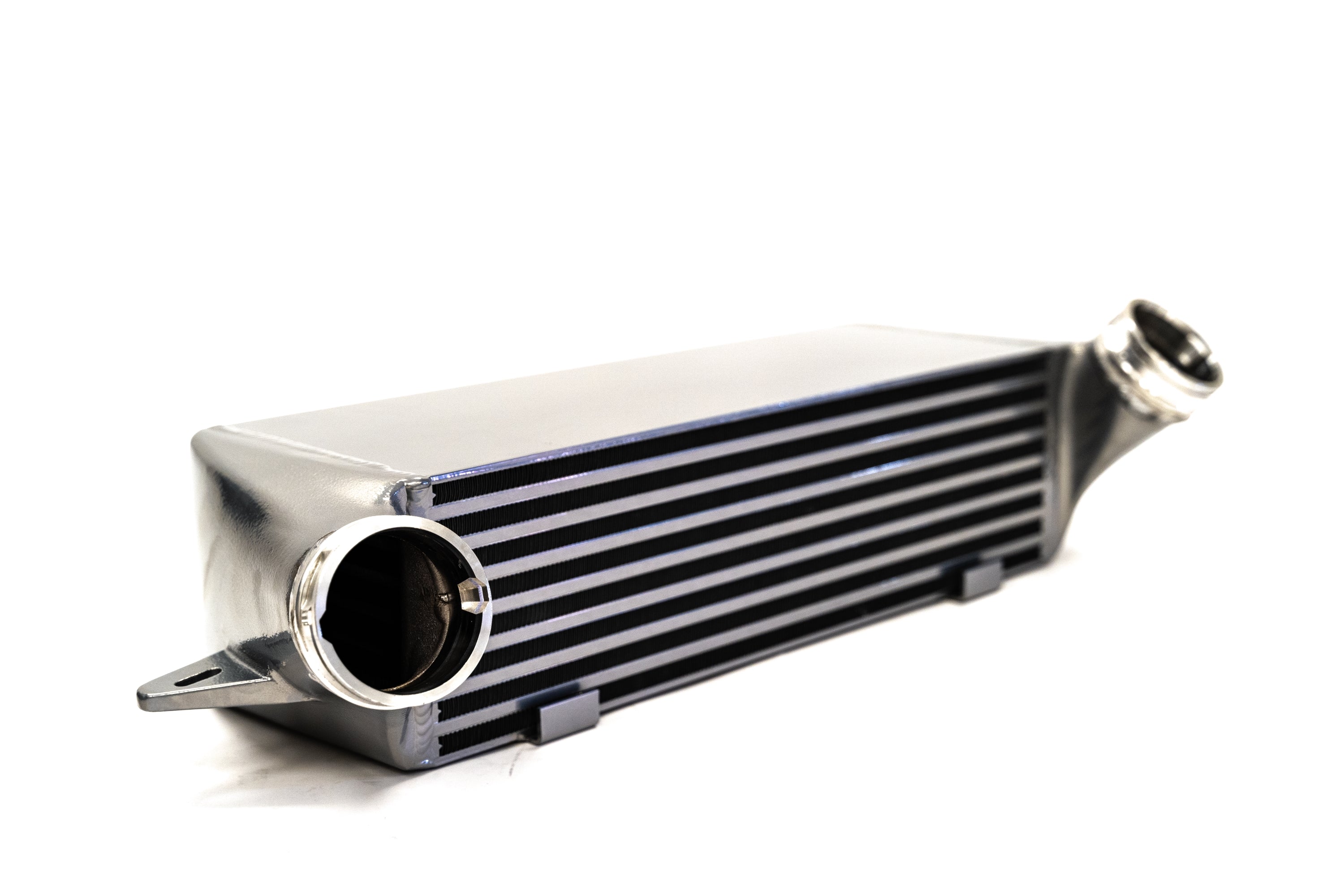

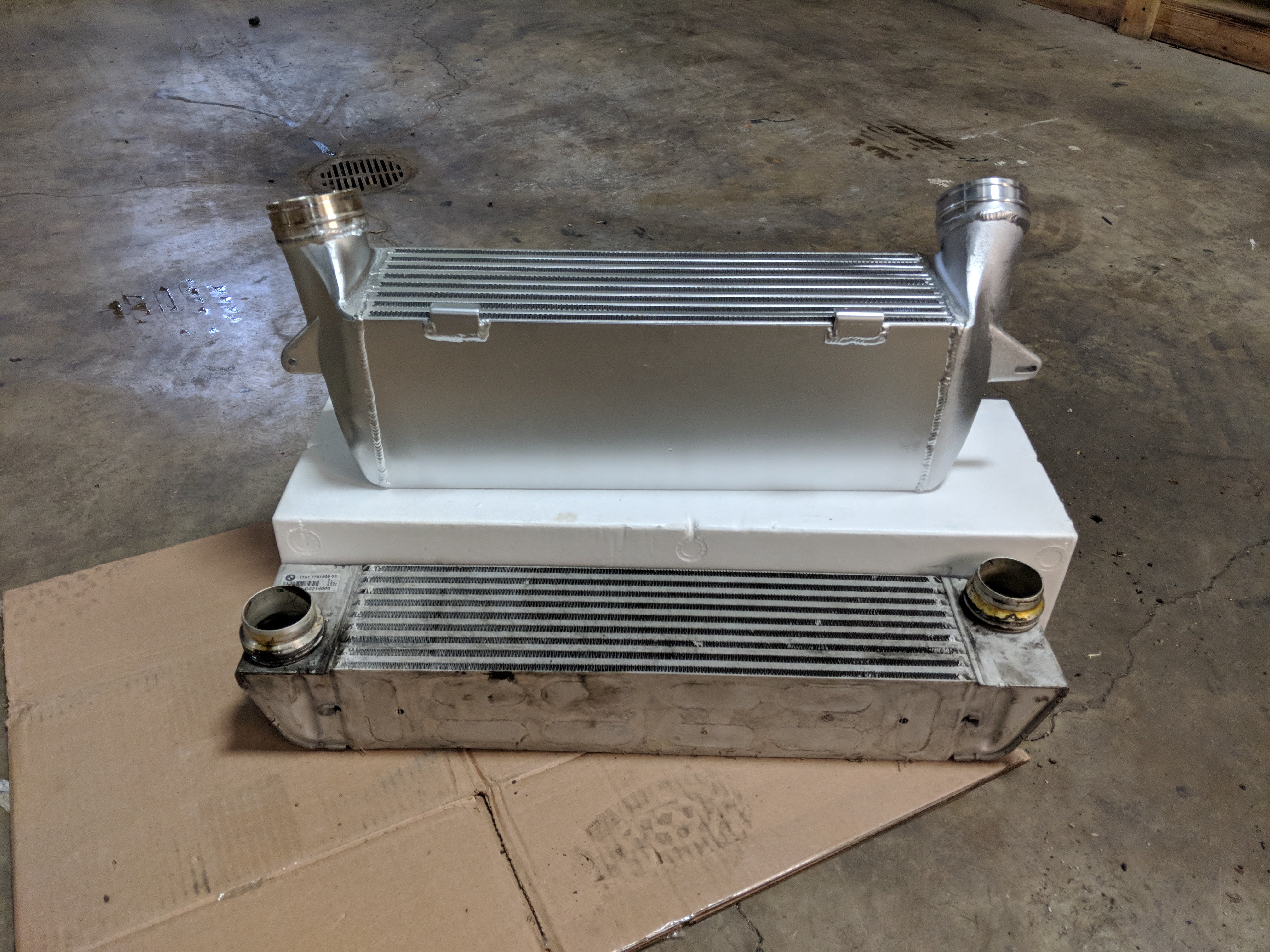

The ARM 7” FMIC measures 20 x 7 x 5.75 inches for a total of 805 cubic inches, almost DOUBLE the size of the OEM 535i intercooler and 180 cu in larger than our 5” FMIC. Combined with our Ultra-Dense fin packs, not only are you getting a substantially larger intercooler, but also one that utilizes its size efficiently for maximum cooling performance.

COOLING IAT's

While testing the 7" FMIC for it's ability to cool the charged air, we found that IAT's increased only three degrees during a 3rd gear datalog. Considering our baseline test with the OEM intercooler resulted in a performance-robbing IAT increase of sixty degrees, the ARM 7" FMIC has 95% better cooling performance than the OEM 535i intercooler.

DYNO PROVEN

When testing the 7" FMIC on a Stage 2+ N54 335i we found it made an average of 10whp/10wtq over our 5" FMIC upgrade and 35whp/38wtq over the OEM intercooler!

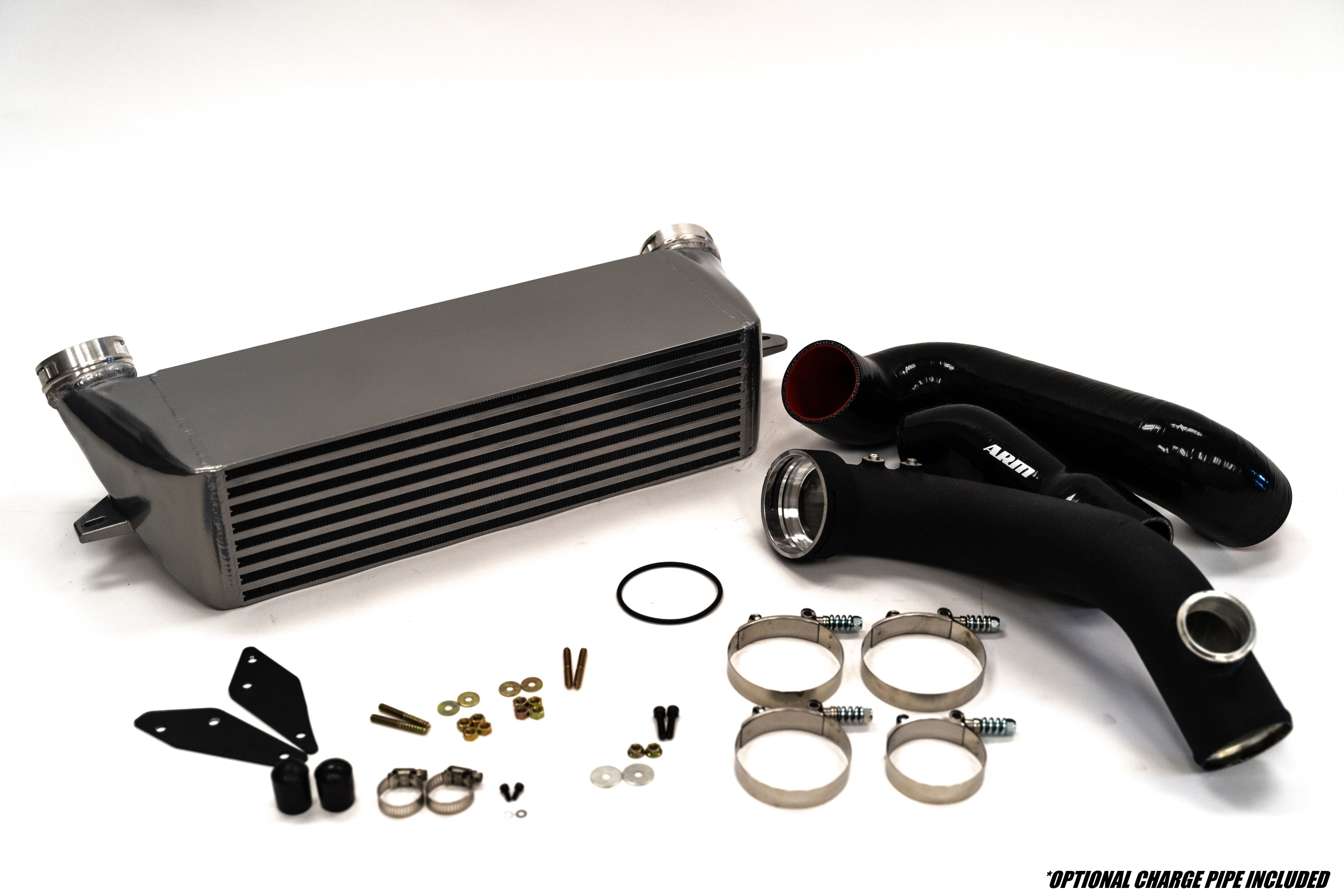

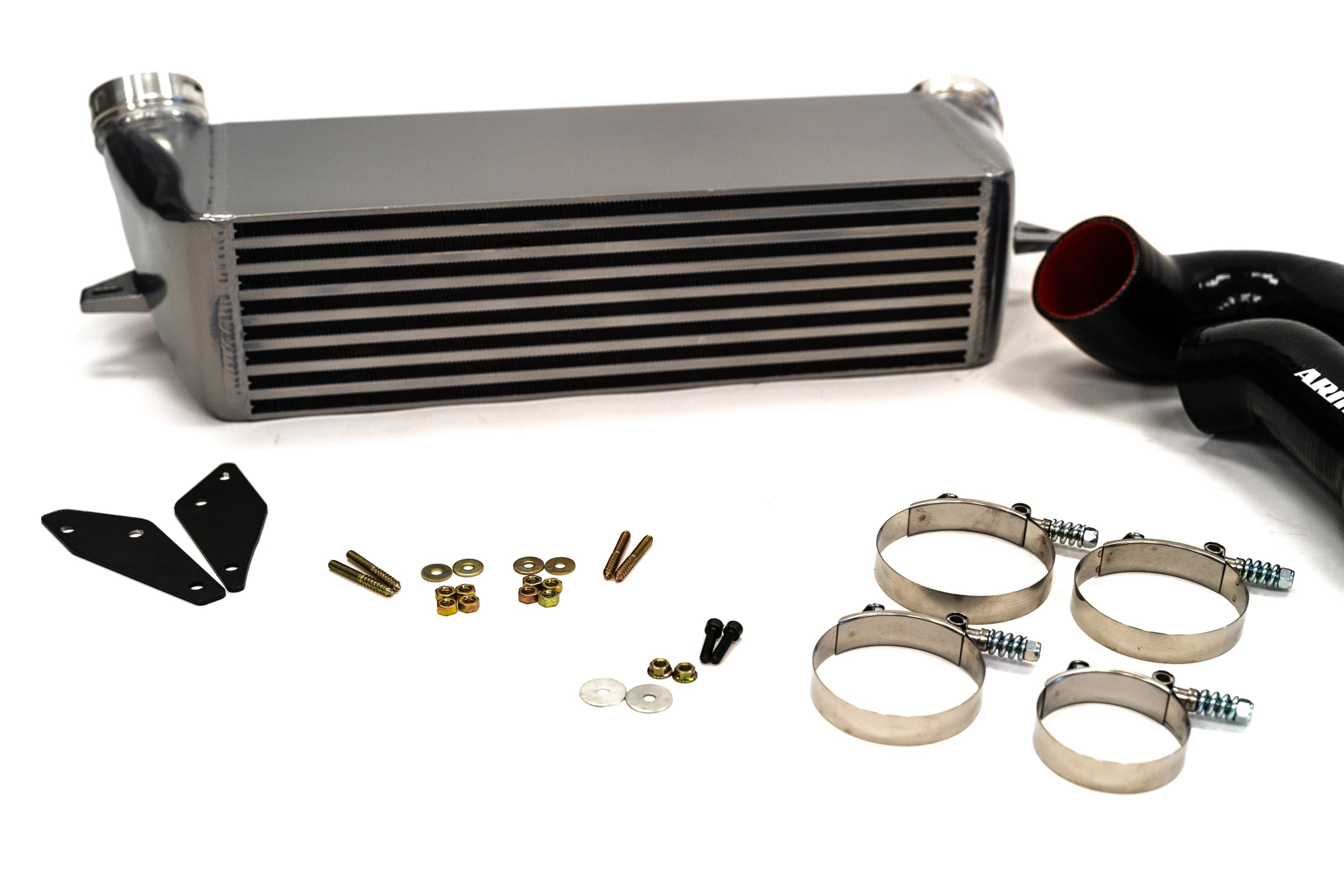

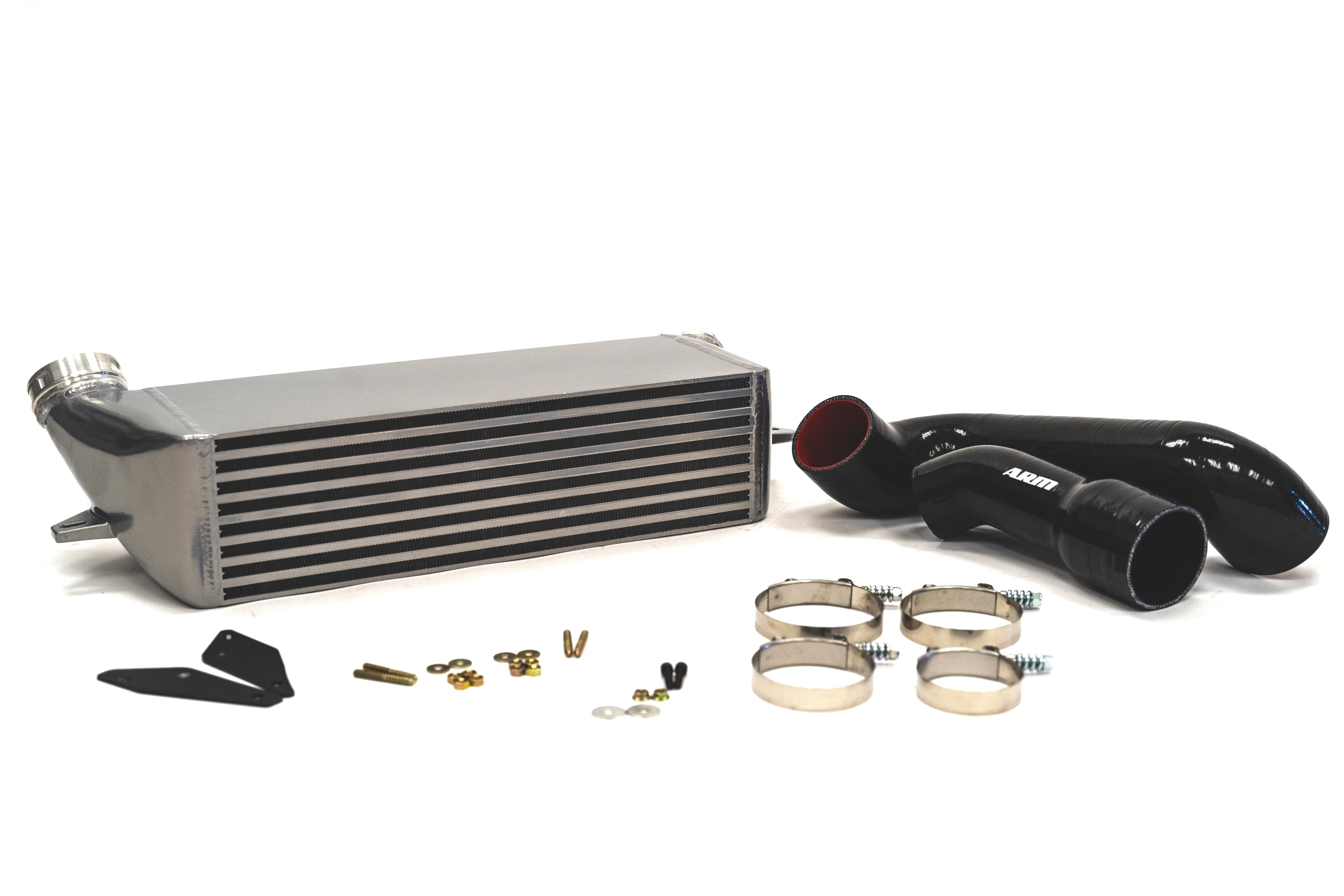

IN THE BOX

• ARM 7" FMIC

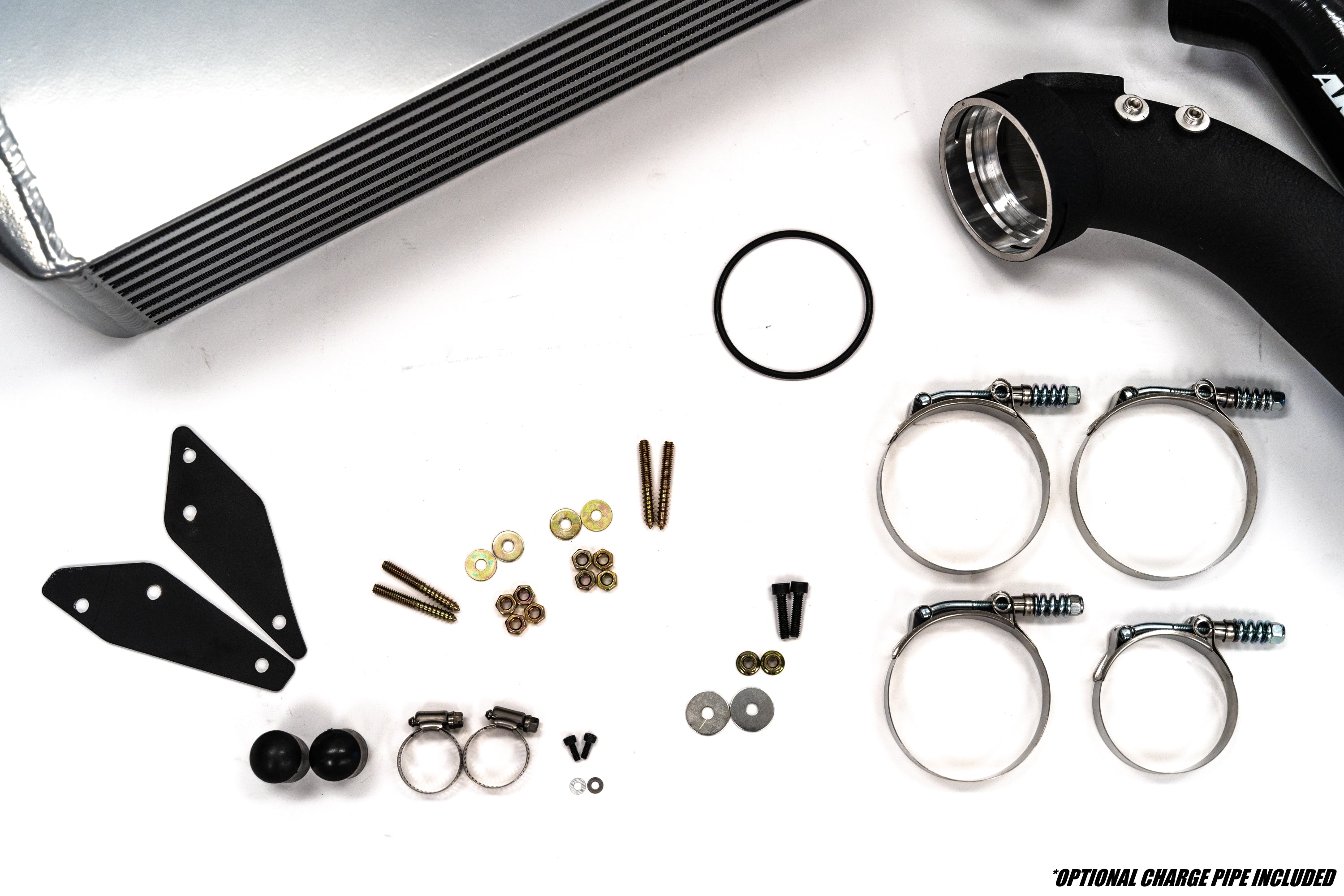

• E60 Mounting Hardware

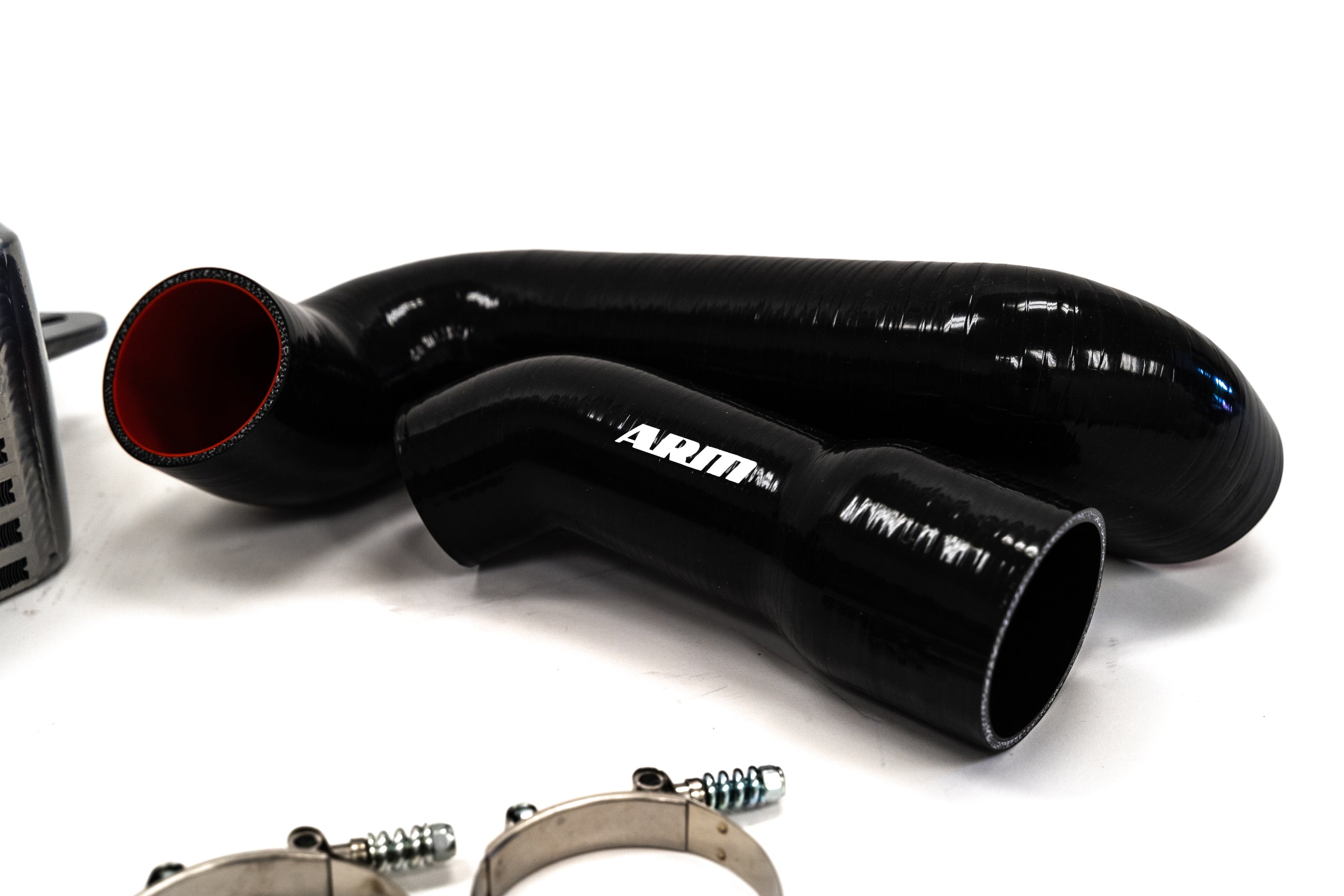

• E60 Hose Upgrade
• E60 Charge Pipe w/TiAL Flange (Optional)

• TiAL Q BOV (Optional)

FITMENT GUIDE

The ARM 7” FMIC does NOT require removal of the front bumper, but will require some trimming of the plastic shroud behind the bumper. A 3" charge pipe is required to install the ARM E6X FMIC Kit. While some other brand 3" charge pipes may work, we can only guarantee fitment with our ARM E6X charge pipe.

Make	Chassis	Model	Engine
BMW	E60	535i	N54 3.0L
BMW	E60	535xi	N54 3.0L
BMW	E61	535i	N54 3.0L
BMW	E61	535xi	N54 3.0L

ARM MOTORSPORTS LIFETIME WARRANTY

Every ARM Motorsports product is backed by a lifetime warranty which is automatically issued at the time of purchase. Your warranty protects you against any defects in craftsmanship or fitment. The warranty entitles you to a replacement unit.
