The CSF #8221 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
Features and Benefits
- Dual-Core Design
- Front Cooler: Additional 16 Rows
- Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 16mm 9-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
- Utilizes OEM Top/Bottom Rubber Seals for Optimal Airflow
- OEM Style "Quick Connect" Inlet/Outlet Connections
- Drop-in Fit Requires No Modifications to Install

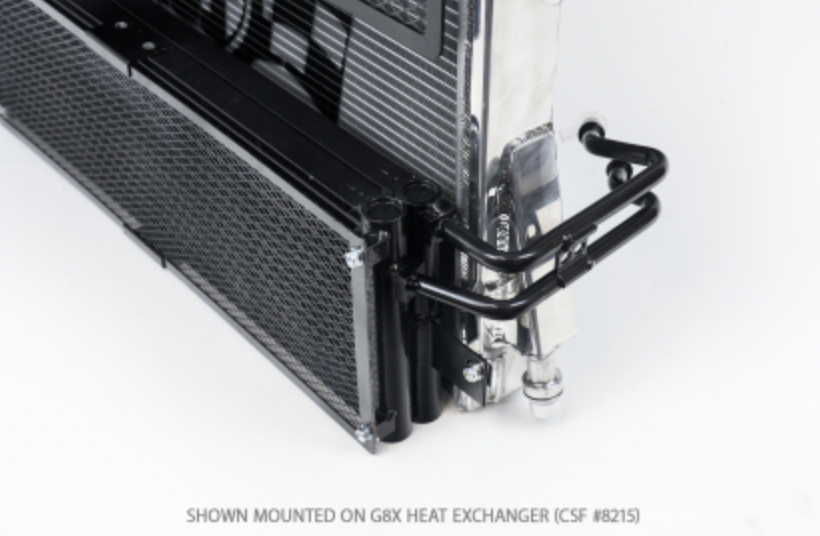

- Can be Installed With CSF's High-Performance Heat Exchanger (CSF #8215) or with the OEM Cooling System
- 2-Year Limited Warranty
- Ideal for Road Racing, Drag Racing, and Vehicles With Increased Performance and/or Transmission Tuning
- 194% Increase in Core & Tank Volume
- 94% Increase in Fluid Capacity Compared to OEM (CSF 1700ml vs. OEM 875ml)
- Two 22mm Stacked Cores = 44mm Core Thickness vs. OEM 28mm Core Thickness
- Rear Cooler: 16 Rows vs. OEM 14 Rows (191mm Overall Height vs. OEM 155mm)
