FOR RACE USE ONLY!

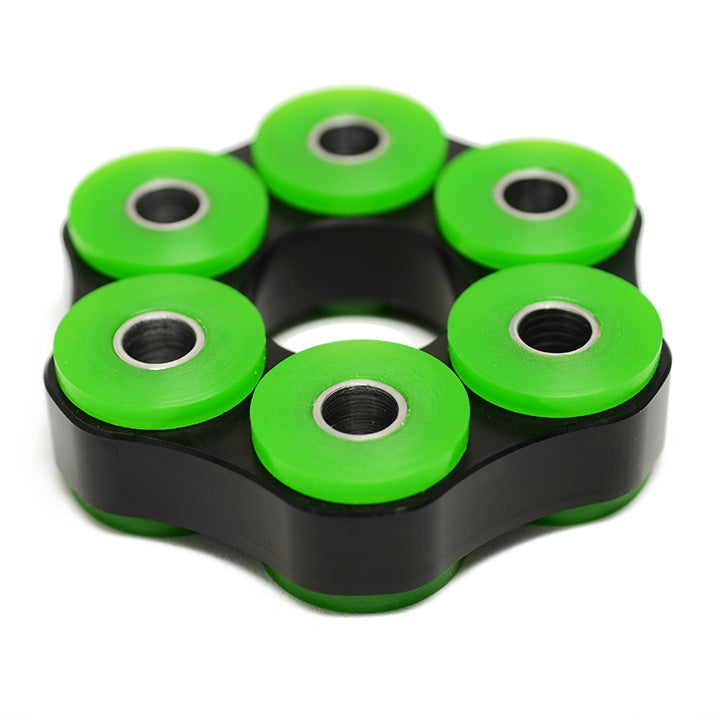

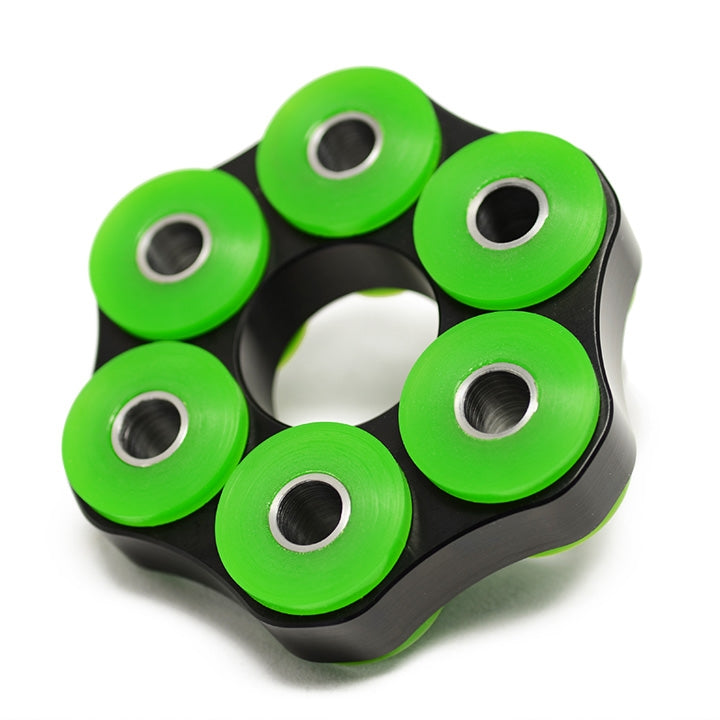

This race flex disc is the small 78mm with 10mm bolt holes. It is commonly
found on E30 vehicles with an automatic or manual transmission (excluding the M3 and 325E).
The Revshift race flex disc frame is made from 6061 aluminum with type III hard anodizing and
utilizes high quality polyurethane bushings to maximize stiffness and
strength while maintaining an appropriate amount of flex.
FOR RACE USE ONLY! This part is very rigid and requires precise
installation. The driveline must be properly aligned and all driveline
components must be in good condition and properly balanced. The engine
mounts, trans mounts, differential bushings, and subframe bushings must
all be rigid to prevent driveline movement. We recommend a hardness of
95a or higher for these components. A new center support bearing and
driveshaft centering bushing are also recommended.
Features:
- 6061 aluminum frame with type III hard anodizing
- 95A polyurethane bushings
- Replaces OEM part # 26111225624 (LK=78mm/10mm)
- Rebuildable using one of our flex disk rebuild kits
