The Precision Raceworks E9x / E8x LOW PRESSURE BUCKETED FUEL PUMPS are designed for customers looking to run all blends of E85. All pump options below include Genuine Walbro 450, Walbro 525, or Walbro 535 fuel pump(s) capable of flowing up to 350% more fuel than the factory fuel pump and all options are 100% E85 compliant.
The modules below require customer to already own a stage 2 or 2.5 Precision Raceworks Pump
-
Stage 3 (4.3 gallons per minute)

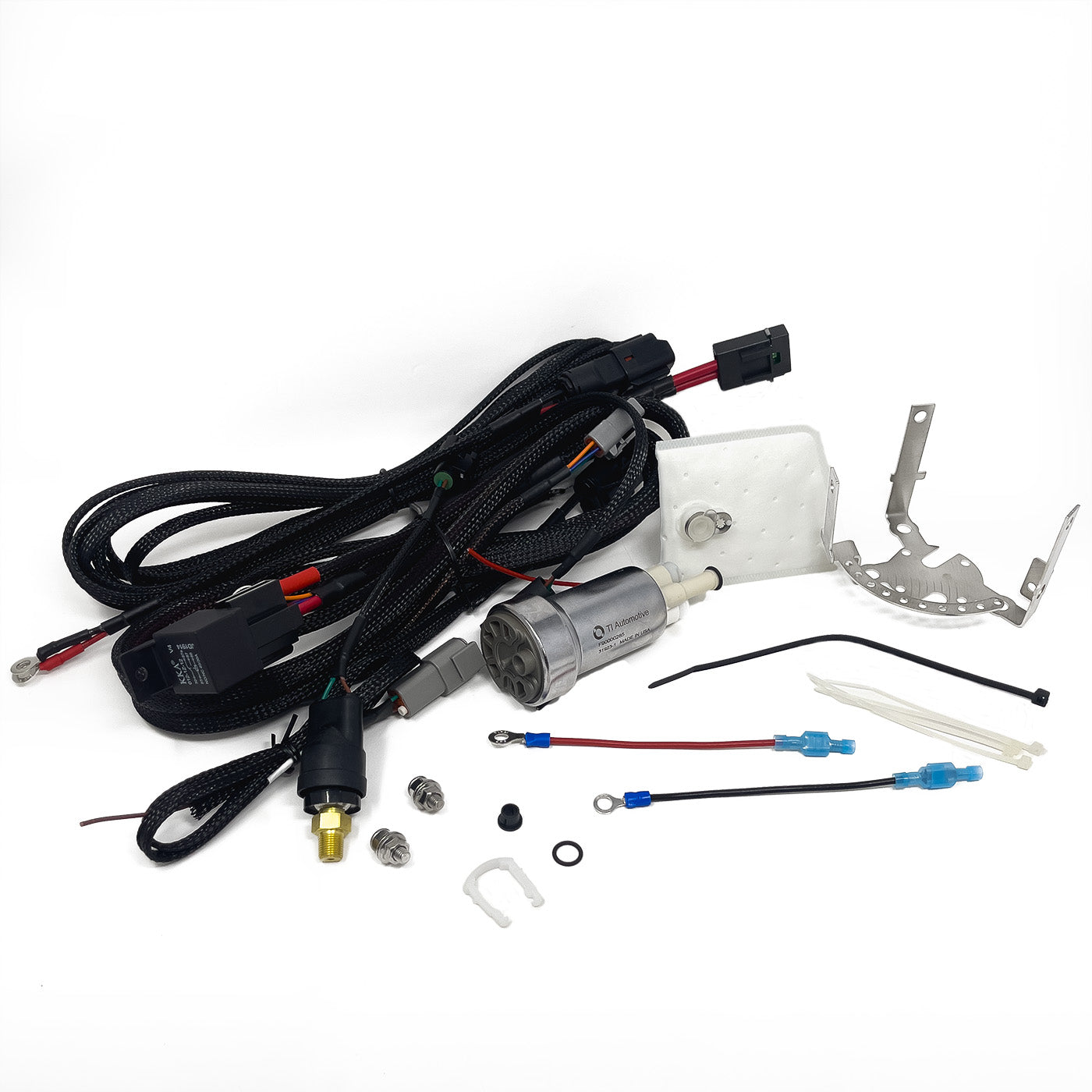

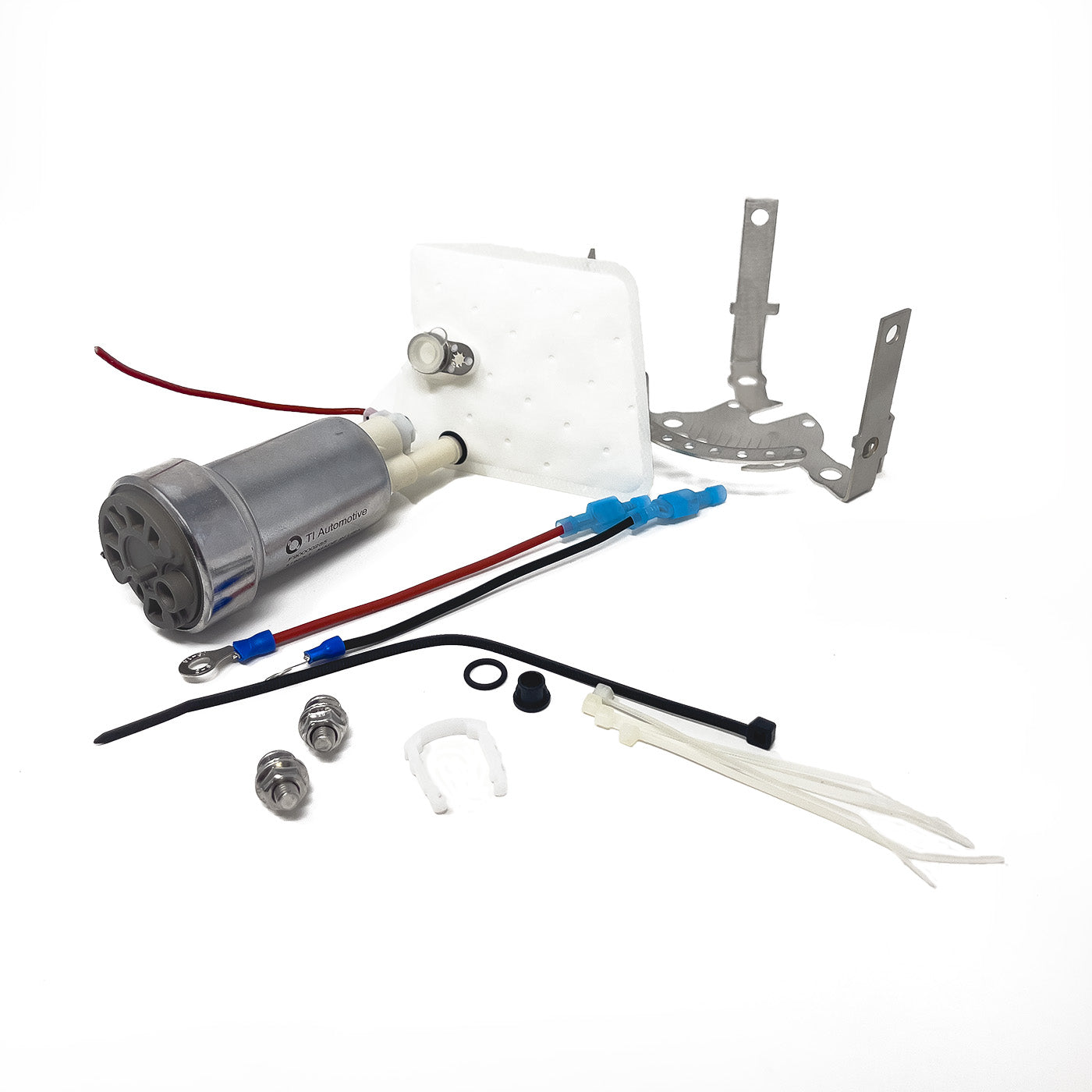

Our Stage 3 bucketed module will add a 450 pump to your existing PR Stage 2 or 2.5 kit. This will include all necessary hardware and wiring to upgrade your pump to a stage 3 and support up to 1000whp* (Rated for 875whp on 100% E85)
-
Stage 3.5 (5.1 gallons per minute)

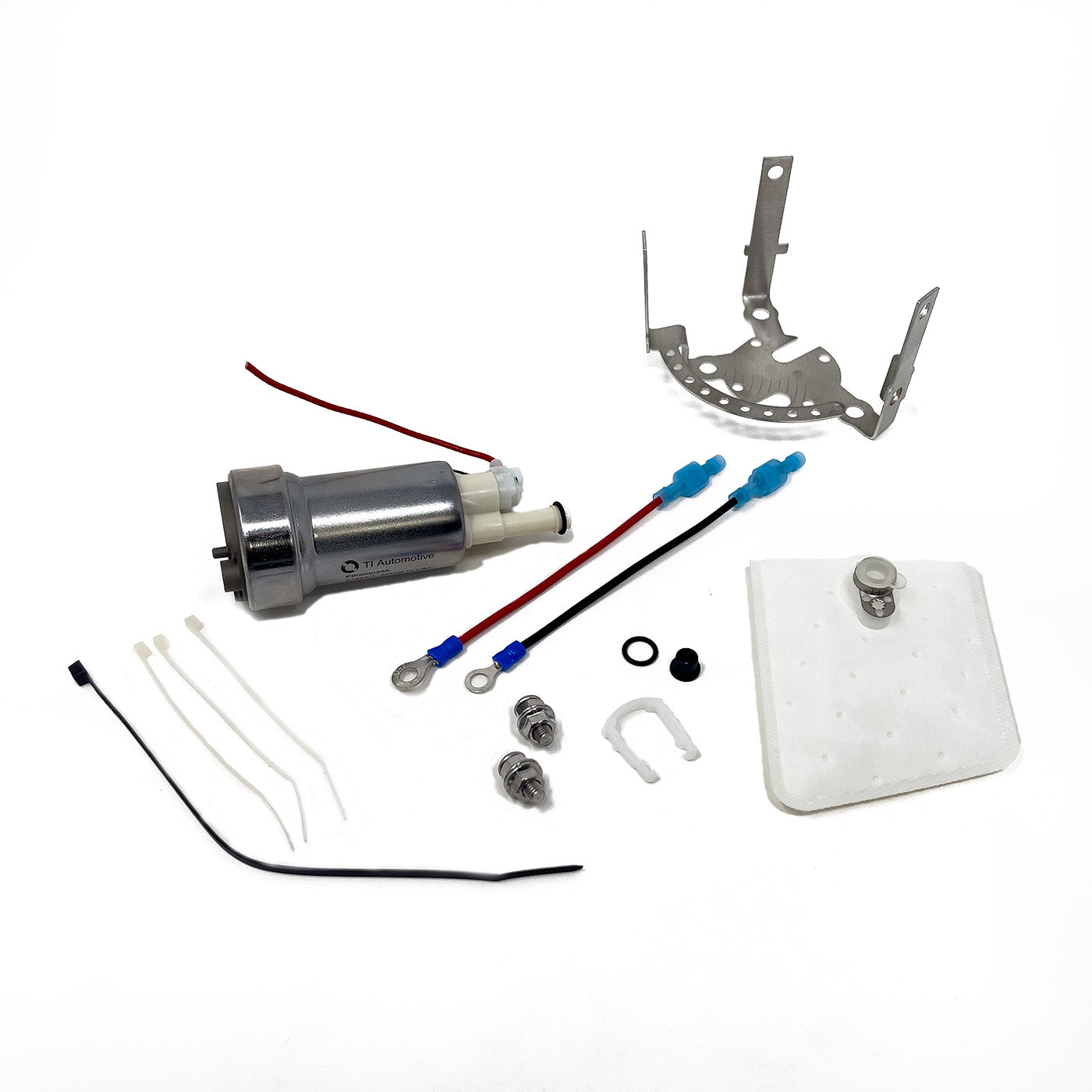

The Stage 3.5 pump module adds a Walbro 525 pump to your existing PR Stage 2 or 2.5 kit. This upgrade module will include all necessary hardware and wiring to upgrade your pump to a stage 3.5 or 3.75. Once combined with your existing kit, this pump combination can support up to 1,100whp* (Rated for 950whp on 100% E85).
ASSEMBLY OPTIONS
- Kit Only:
- Our design was targeted to remove the need for sending your fuel pump assembly in for modification. Following the provided instructions the average home mechanic can assemble and install our kit. This means less down time and a great reduction in both assembly & shipping cost as well. Best of all you end up with your pump in the condition it was in when you pulled it from the car and run no risk of getting a housing back that is in poor condition.
- Install is easy there is no guess work on engagement and sealing of o-ring or complications and risks tightening clamps that can poke holes in critical plastic components near by.
While all bucketless fuel pumps flow .2gpm more than a bucket design that retains the venturi it comes at a cost. Bucketless pumps should not be driven on tanks lower than ¼ full and should not be used for road course racing. This is not a disadvantage of only bucketless designs but also a disadvantage for any bucket design which deletes the venturi. If you do not plan on road course racing (not street racing) and are responsible at maintaining ¼ tank of fuel during spirited driving bucketless pumps can be a cheaper alternative for you.
*To reach the advertised ability of these fuel pumps use of the Precision Raceworks in tank filter regulator assembly is required.
This is a true plug and play solution that anyone can install in their home garage and start taking advantage of the benefits right away.
For more details see the specifications tab
Specifications
Stage 3 pump flow (5bar): 1.5 GPM / 5.65 LPM
Stage 3.5 pump flow (5bar): 1.69 GPM / 6.4 LPM
Ethanol Compatibility: Yes
Tuning Required: No
