Black Market Parts (BMP) E9X/E8X Modular Bucket-less Fuel Pump (Stages 2-3.75)

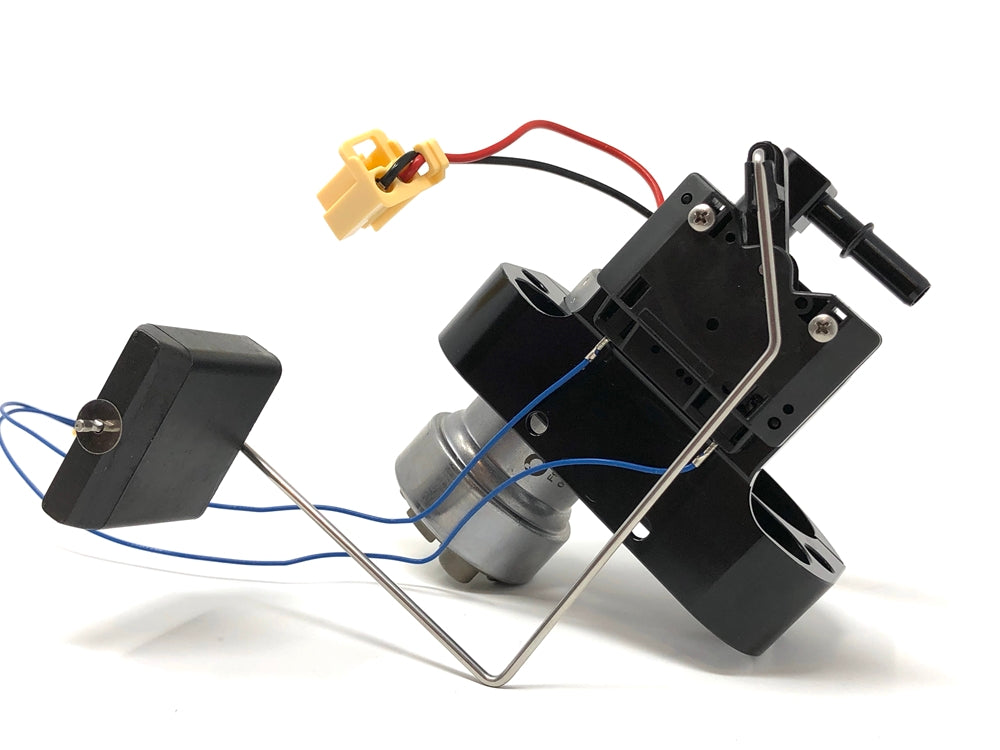

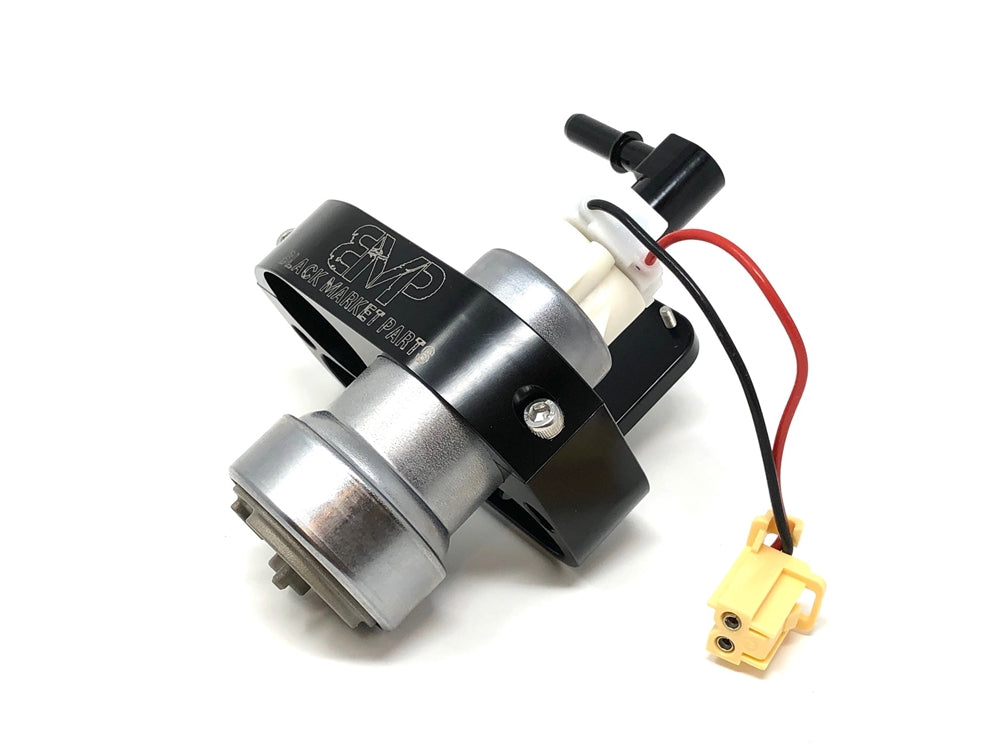

The Black Market Parts BUCKETLESS LOW PRESSURE FUEL PUMP's are designed for customers looking to run all blends of E85.  All pump options below include Genuine Walbro 450 (F90000274), Walbro 525 (F90000285), or Walbro 535 (F90000295) fuel pump(s) capable of flowing up to 350% more fuel than the factory fuel pump and all options are 100% E85 compliant. Pump(s) ship(s) assembled with OEM connector to plug into the factory fuel pump top hat making it quick and easy to install.

• Stage 2 (2.4 gallons per minute)

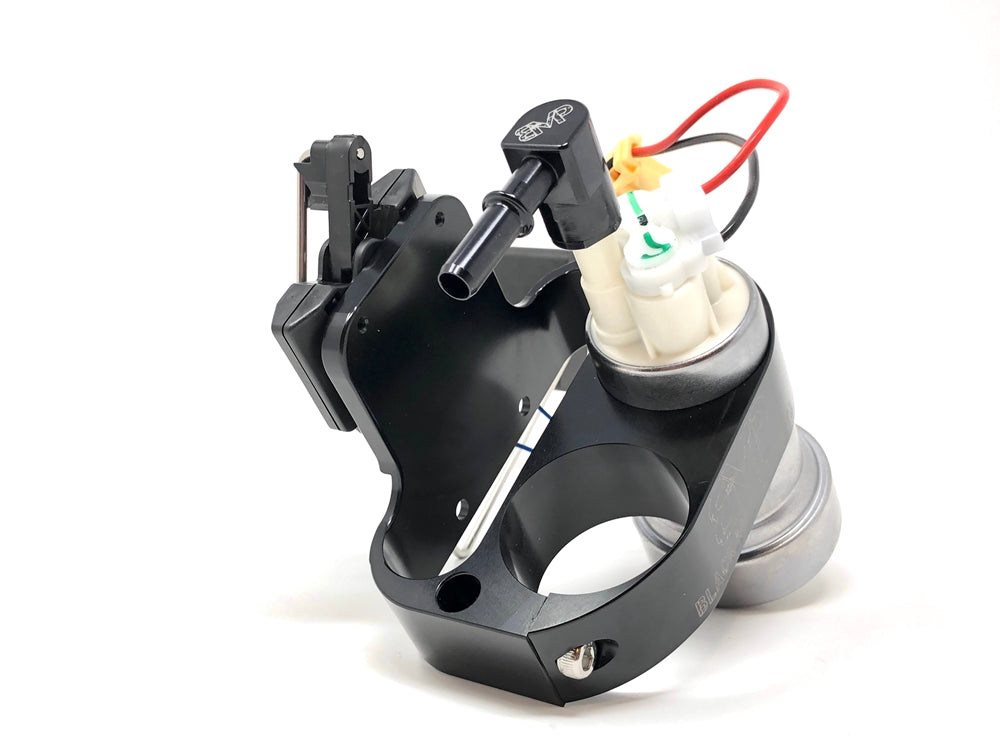

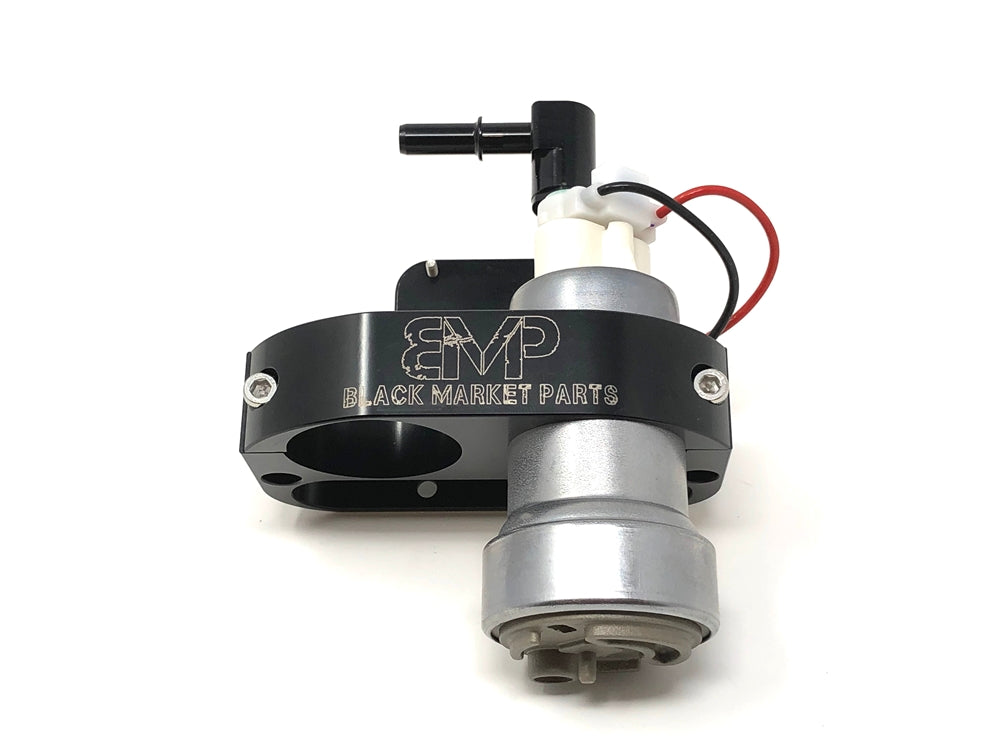

  Our Stage 2 bucketless fuel pump comes pre-assembled with a single Walbro 450 (F90000274) fuel pump.  This pump can support up to 600whp (Rated for 550whp on 100% E85) and is ready to grow with you as your needs demand. With an open expansion slot you can purchase our stage 3 pump module or Stage 3.5 module and have everything you need to match your future horsepower goals.

• Stage 2.5 v2 (3.1 gallons per minute)
  Our Stage 2.5 bucketless fuel pump comes pre-assembled with a single Walbro 535 (F90000295) fuel pump. This pump can support up to 650whp (Rated for 575whp on 100% E85) and is ready to grow with you as your needs demand. With an open expansion slot you can purchase our stage 3 pump module or Stage 3.5 module and have everything you need to match your future horsepower goals.

  •


• Stage 3 (4.3 gallons per minute)

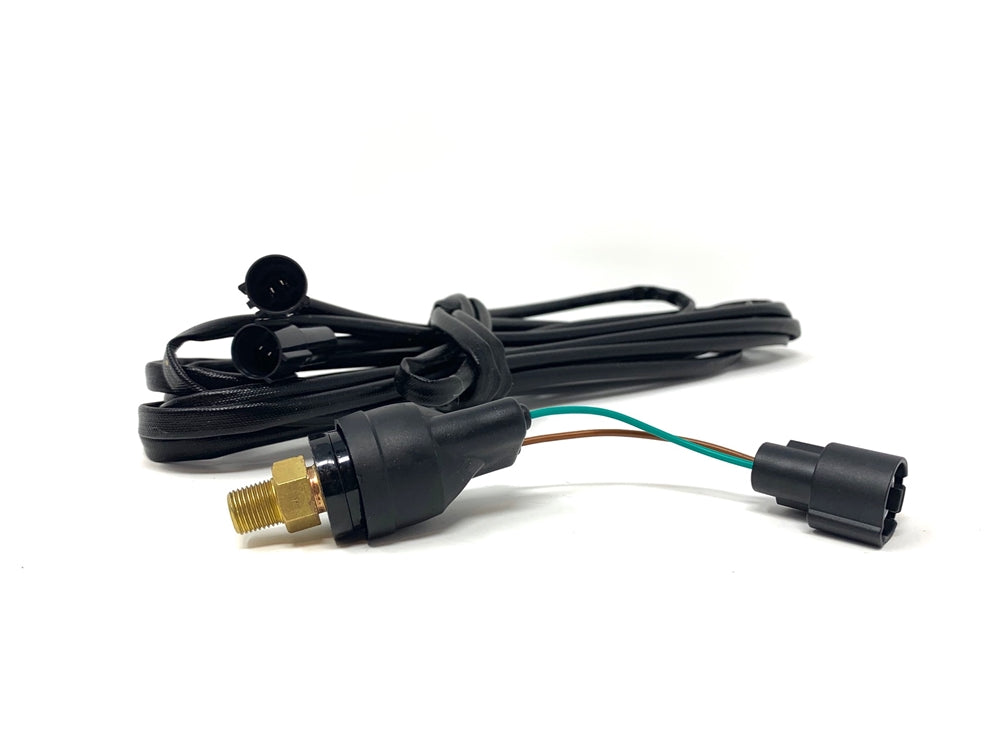

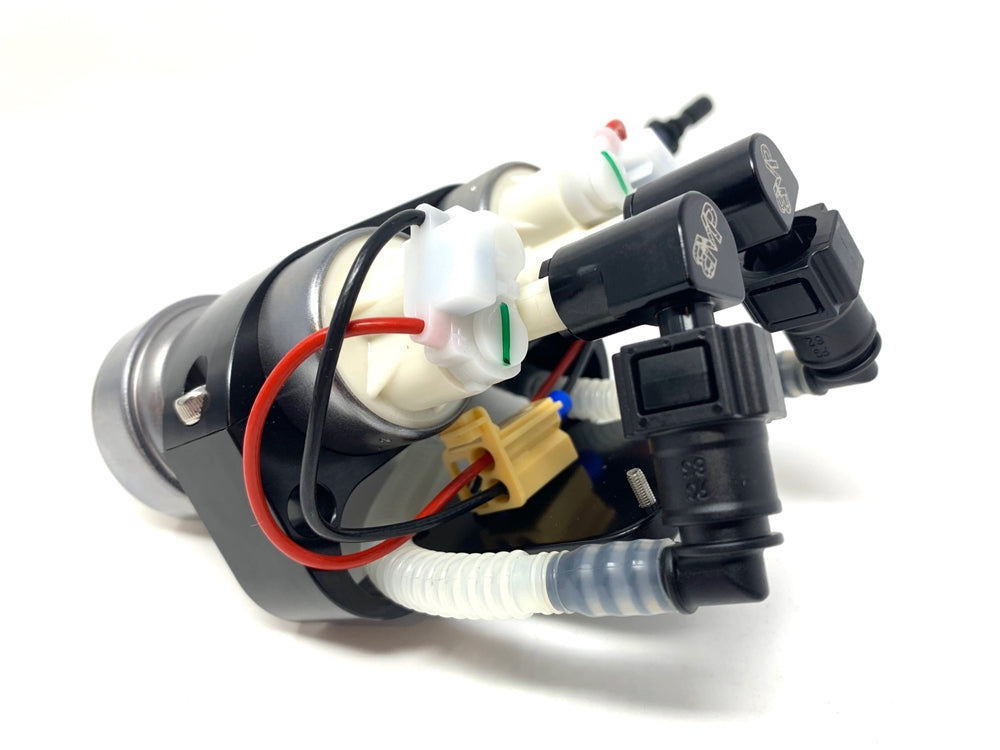

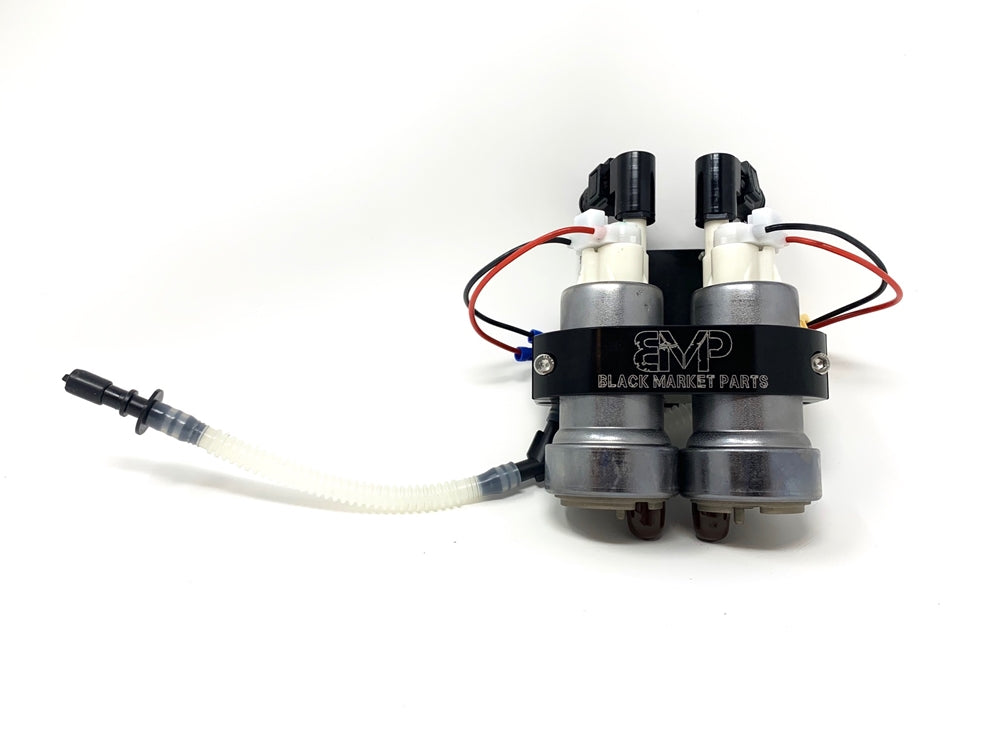

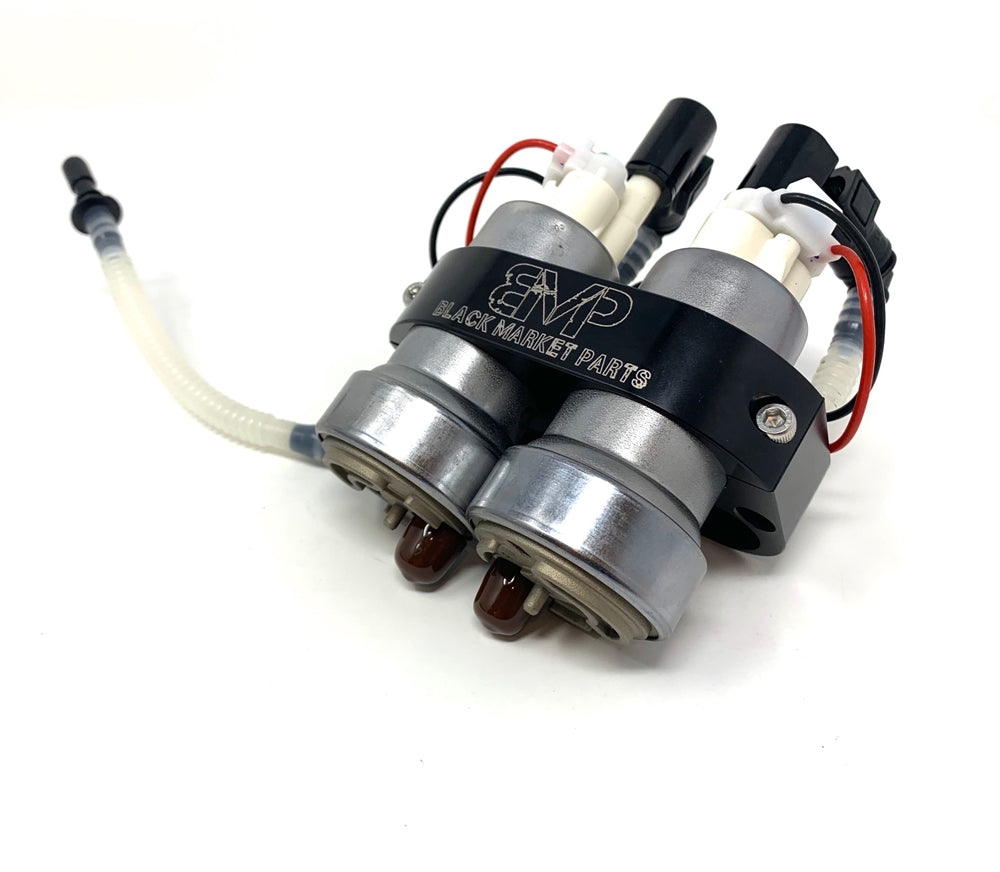

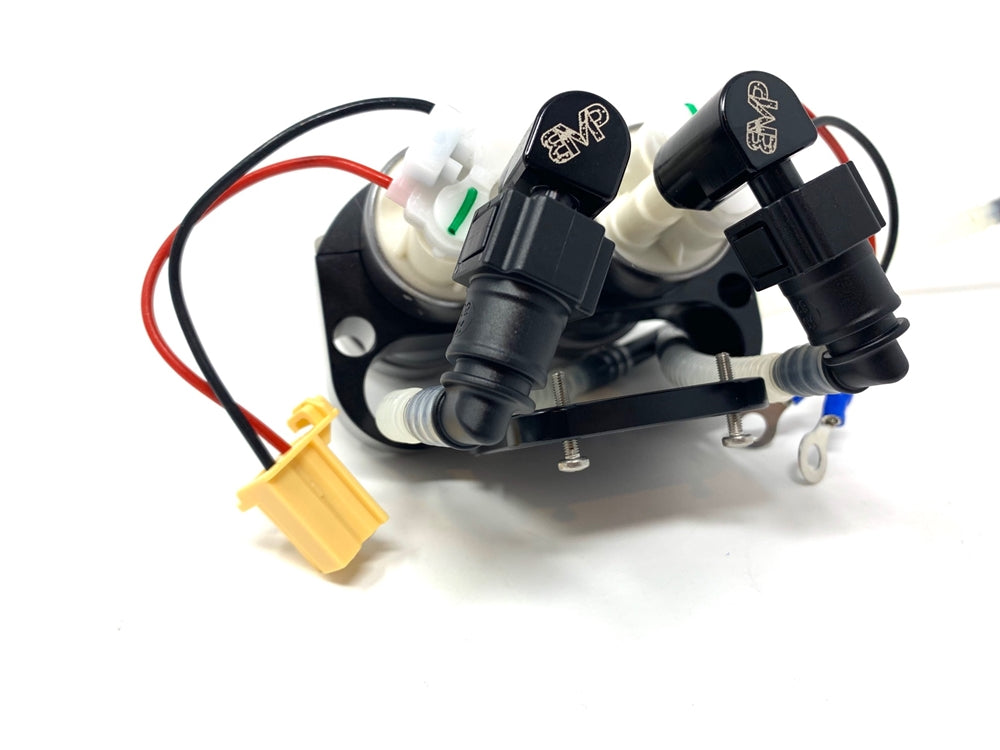

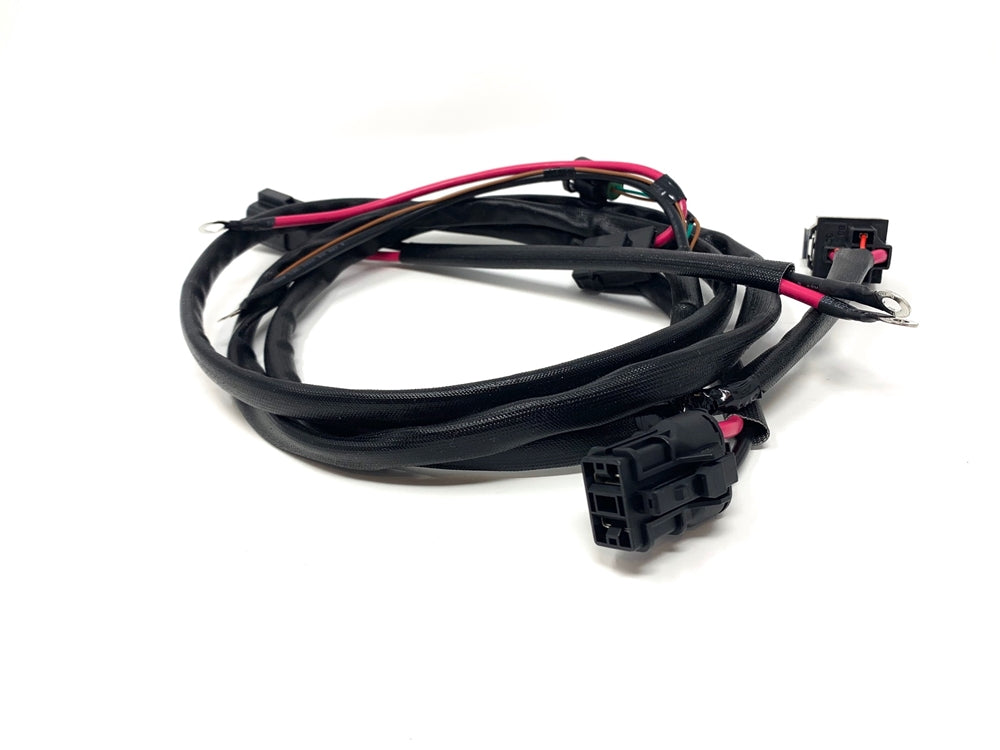

  Our Stage 3 bucketless fuel pump comes pre-assembled and includes all necessary wiring and pump activation switch (hobbs switch).  This pump boasts dual Walbro 450 (F90000274) fuel pumps and can support up to 1050whp* (Rated for 875whp on 100% E85) and is ready to grow with you as your needs demand. With a modular plug and play design this kit can be upgraded with our Stage 3.5 or Stage 4 module and have everything you need to match your future horsepower goals.

• Stage 3.5 (5.1 gallons per minute)
  Our Stage 3.5 bucketless fuel pump comes pre-assembled and includes all necessary wiring and pump activation switch (hobbs switch).  This pump boasts a single Walbro 450 (F90000274) primary fuel pump and single Walbro 525 (F90000285) secondary fuel pump offering maximum flow without costly pump controllers. This pump can support up to 1,150whp* (Rated for 975whp on 100% E85) and is ready to grow with you as your needs demand. With an open expansion slot you can purchase our stage 3 pump module or Stage 3.5 module and have everything you need to match your future horsepower goals.

• Stage 3.75 v2 (6 gallons per minute)
  Our Stage 3.75 bucketless fuel pump comes pre-assembled and includes all necessary wiring and pump activation switch (hobbs switch). This pump boasts a Walbro 535 (F90000295) primary and a Walbro 525 (F90000285) secondary fuel pumps. This pump can support up to 1,200whp* (Rated for 1000whp on 100% E85) and is ready to grow with you as your needs demand.

While all bucketless fuel pump flows .2gpm more than a bucket design that retains the venturi it comes at a cost. Bucketless pumps should not be driven on tanks lower than ¼ full and should not be used for road course racing. This is not a disadvantage of only our bucketless system but is a disadvantage of all bucketless pump designs (or bucket designs which delete the venturi). If you do not plan on road course racing (not street racing) and are responsible at maintaining ¼ tank of fuel during spirited driving this is the pump for you.

*Note: To reach the advertised ability of these fuel pumps use of the Precision Raceworks in tank filter regulator assembly is required.

This is a true plug and play solution that anyone can install in their home garage and start taking advantage of the benefits right away.

For more details see the specifications tab

Specifications

Lock Ring Tool Included: NO - Available Here

• Factory BMW pump
  • Pump flow 72psi (5bar): XXX GPM
  • Pump Weight:
  • Horsepower Supported Pump Gas:
  • Horsepower Supported 100% E85: NOT COMPATIBLE


• Stage 2
  • Pump flow 72psi (5bar): XXX GPM
  • Pump Weight:
  • Horsepower Supported Pump Gas: 600

  • Horsepower Supported 100% E85: 550
  • Aftermarket EKP Required: No

• Stage 2.5 v2
  • Pump flow 72psi (5bar): XXX GPM
  • Pump Weight:
  • Horsepower Supported Pump Gas: 650
  • Horsepower Supported 100% E85: 575

  • Aftermarket EKP Required: No

• Stage 3
  • Pump flow 72psi (5bar): XXX GPM
  • Pump Weight:
  • Horsepower Supported Pump Gas: 1,050*

  • Horsepower Supported 100% E85: 875*
  • Aftermarket EKP Required: No


• Stage 3.5
  • Pump flow 72psi (5bar): XXX GPM
  • Pump Weight:
  • Horsepower Supported Pump Gas: 1,150*
  • Horsepower Supported 100% E85: 975*

  • Aftermarket EKP Required: No

• Stage 3.75 v2
  • Pump flow 72psi (5bar): XXX GPM
  • Pump Weight:
  • Horsepower Supported Pump Gas: 1,200+*
  • Horsepower Supported 100% E85: 1,000+*
  • Aftermarket EKP Required: No


*To reach the advertised ability of these fuel pumps use of the Precision Raceworks in tank filter regulator assembly is required.
