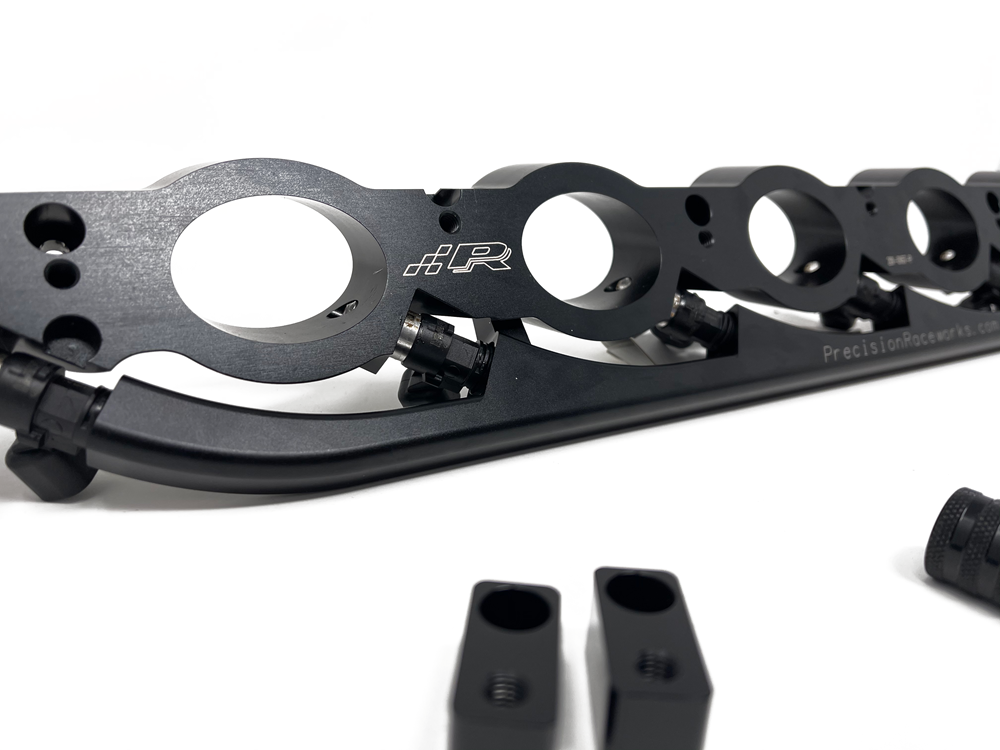

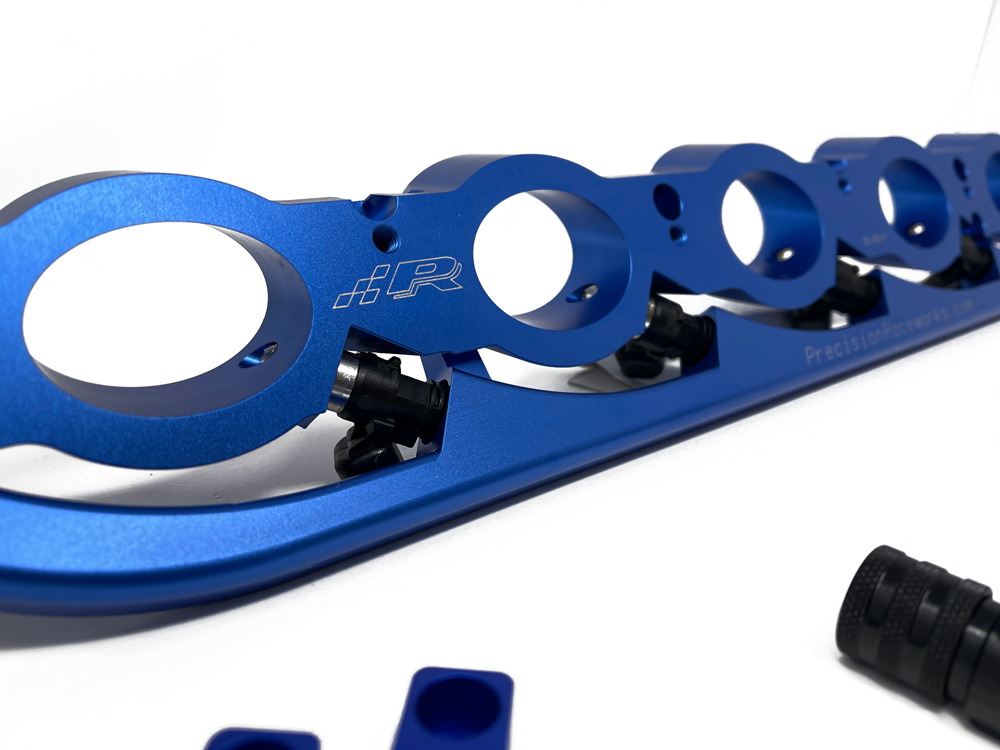

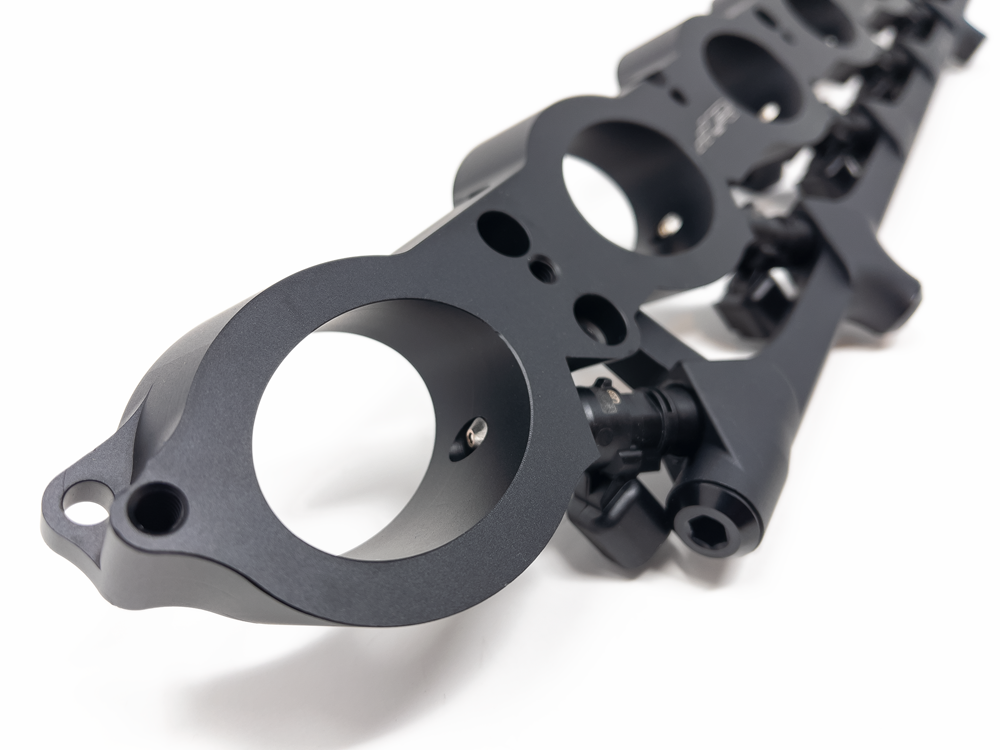

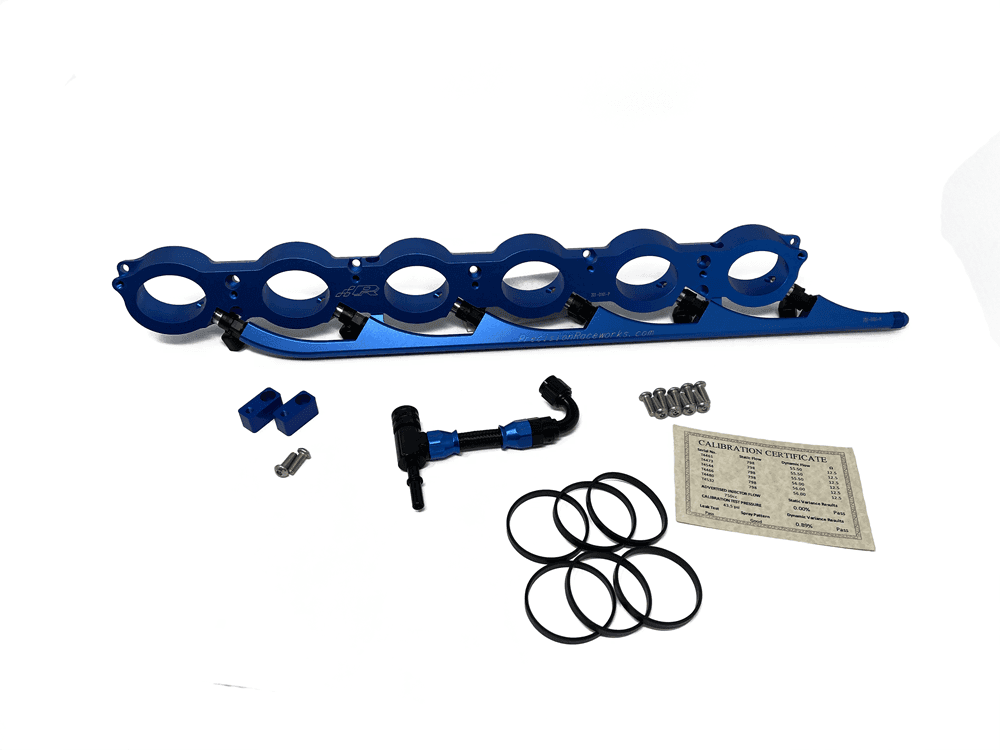

B58 Gen 1&2 Port Injection ( A90 , A91 , Supra , BMW )

The Precision Raceworks Multiport Injection (MPI) kit with flex fuel compatibility is a necessity to safely and sufficiently support the power levels anyone needing additional fueling. This kit is capable of providing supplemental fueling to all MK5 Supra's and also BMW's equipped with B58 Gen 2 engine (see fitment guide for full details).

Click the button to find which motor you have to check compatibility with this kit. If you have a B58D, this will work. If any other version, then please select the GEN 1 Version.

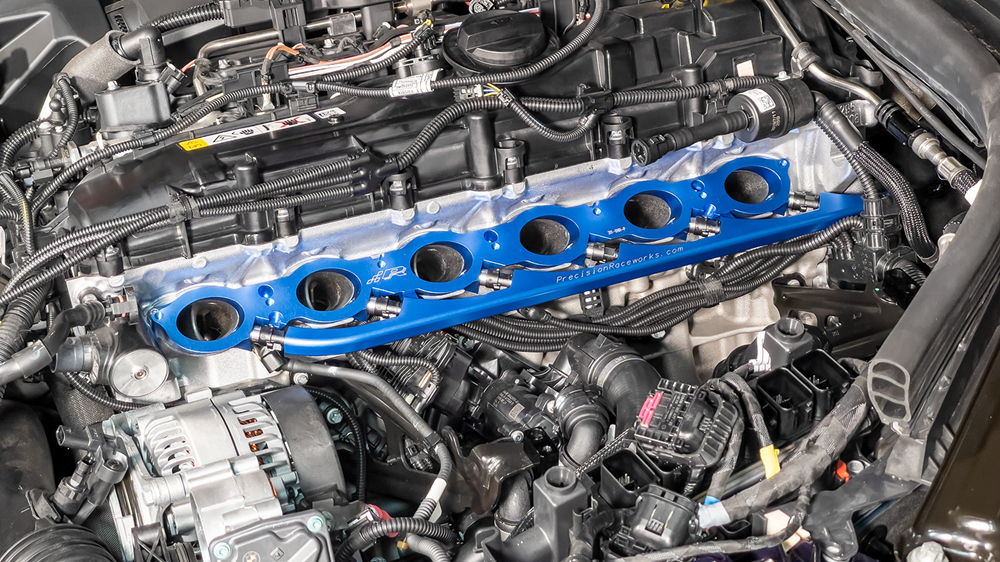

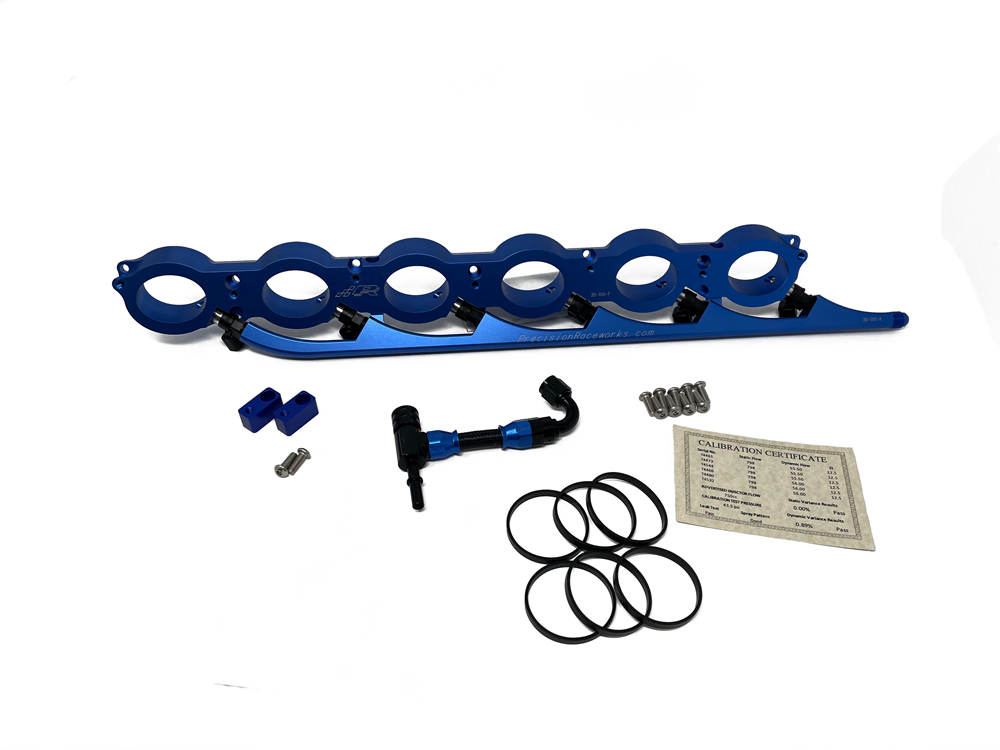

The complete kit integrates seamlessly into your car like it left from the factory with it installed; you can’t even see the kit once the car is assembled! This kit includes everything needed to add multi-port injection and is 100% e85 compliant. We include new genuine Bosch Motorsport injectors which are flow matched both static and dynamic by an outside lab to industry leading requirements. A Detailed certificate of conformance and genuine Bosch product certificate is included with each kit giving you all flow data needed for optimal tuning.

Don’t be tricked into thinking all port injection kits are equal, the Precision Raceworks is the only port injection kit currently where all 6 injectors have even fuel distribution for each cylinder. Additionally this kit features 750cc* injectors standard (this flow rate is based on industry injector flow test pressure of 43.5psi) at 72psi these injectors flow 1000cc. What this means is our kit is capable of supporting builds from 400whp up to 1,000whp out of the box.

Simply pick up this kit and pair it with your favorite injector controller and you are ready to go! Our favorite injector controller is the AIC-6 which is compatible with all B58 cars and is the industry standard which is why we offer it with this kit.

For more product details see the specifications tab

(Aftermarket 2 piece charge pipe required)



*Actual flow rate may vary, as advertised flow rate is common average.



Specifications

Weight: 2.9 lbs

Engine Compatibility: All B58 Gen 2 engines (see fitment guide for full details)

Injector brand: Genuine Bosch Motorsports

Advertised Flow - 750cc: 750cc @ 43.5psi , 1050cc @ 72.5psi

Advertised Flow - 950cc: 950cc @ 43.5psi, 1226cc @72.5psi

Fuel Compatibility: All known fuels

Flow Matched: 2% or better (250% more accurate than off the shelf injectors)

Connection Type: EV6 (Called US Car Connector) works with AIC and JB4 Controller

Hardware included: Yes full stainless hardware included

Gasket Type: OEM Spec manifold gaskets used in port injection plate (included)

Fuel Distribution Pattern: Diagonal equal distribution across all cylinders

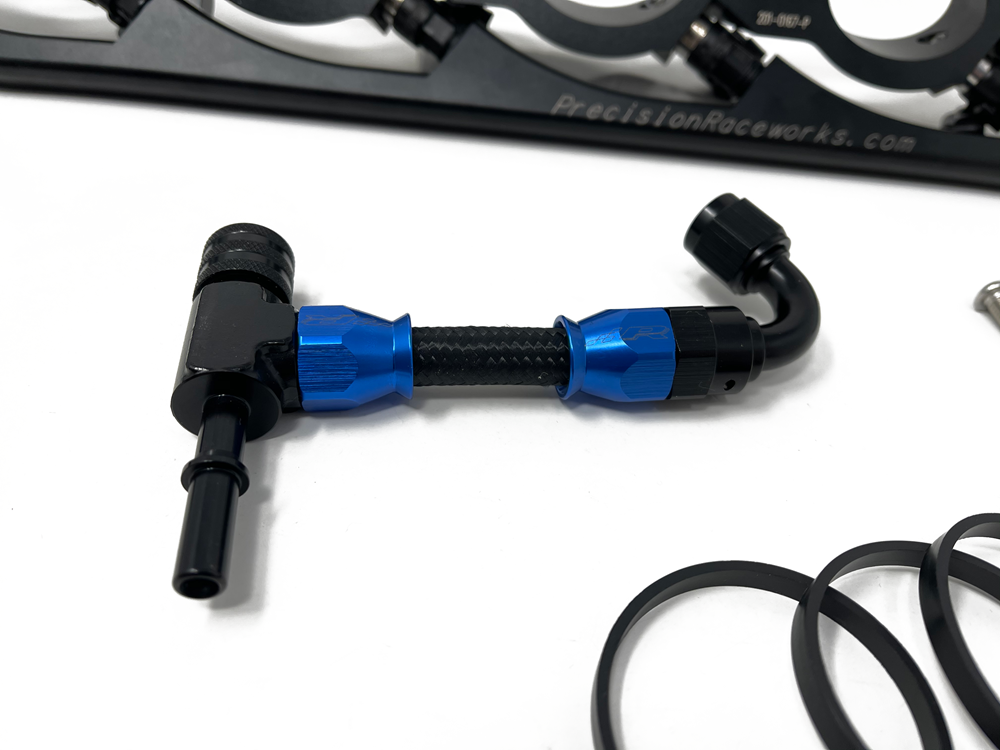

Fuel Line: Smooth bore PTFE with stainless braid and nylon braid safe for all fuel types
